Left Fuel Rail (G1557477): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Make sure that tools and equipment are clean and free of foreign material and lubricant.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions (Description and Operation).
  2. Refer to: Fuel System Pressure Release - V6 S/C 3.0L Petrol/V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol (General Procedures).
  3. Refer to: Battery Disconnect and Connect (General Procedures).
  4. Refer to: Engine Cover - V6 S/C 3.0L Petrol (Interior Trim and Ornamentation, Removal and Installation).
  5. Refer to: Secondary Bulkhead Left Panel - V6 S/C 3.0L Petrol/V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol (Removal and Installation).
  6. Refer to: Fuel Injection Component Cleaning (General Procedures).
  7. CAUTION: Be prepared to collect escaping fluids.

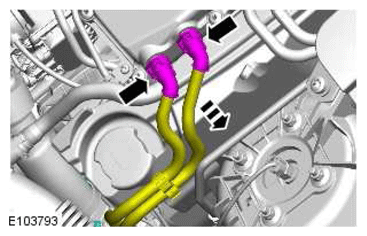

    G11419148

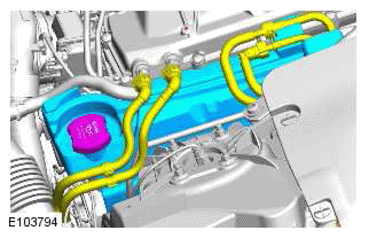

  8. G11419149
  9. CAUTION: Be prepared to collect escaping fluids.

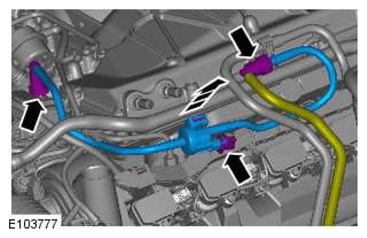

    G11419150
  10. CAUTION: Be prepared to collect escaping fluids.

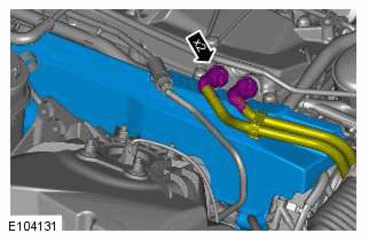

    G11419151
  11. CAUTION: Be prepared to collect escaping fluids.

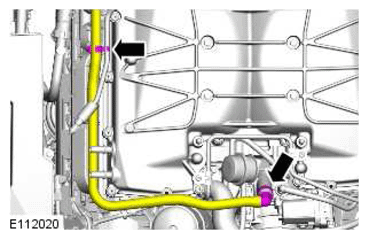

    G11419152

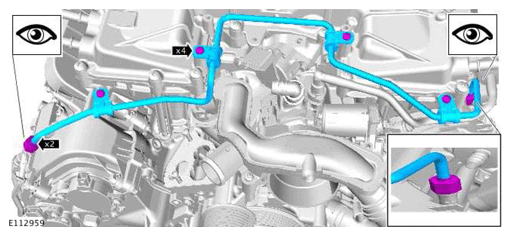

  12. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11419153

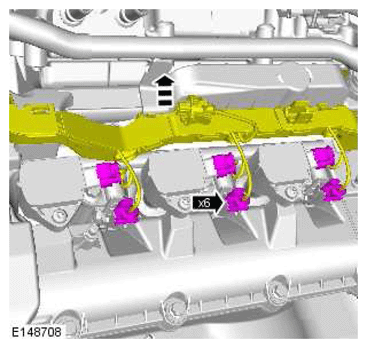

  13. G11419154

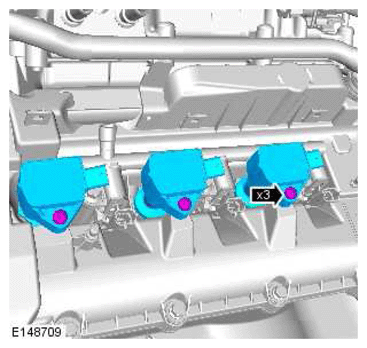

  14. G11419155

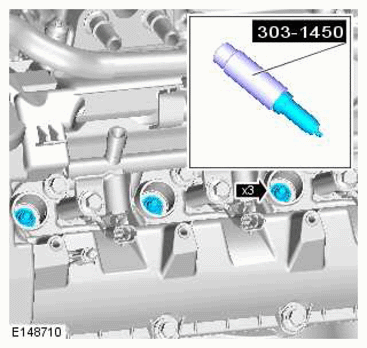

  15. G11419156

    Special Tool(s):  303-1450

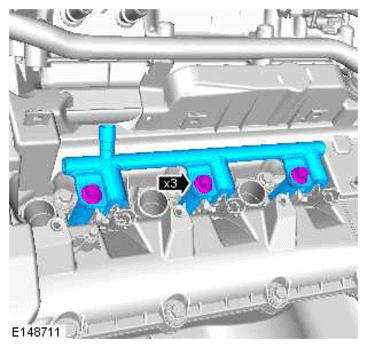

  16. CAUTION: Make a note of the fuel injector clamp alignment to the fuel rail prior to removal.
    G11419157

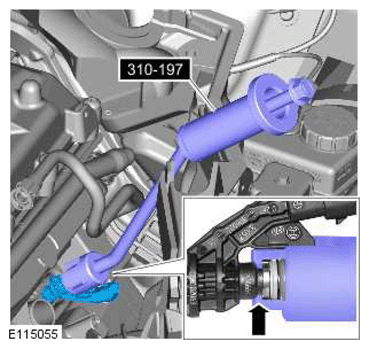

  17. CAUTION:
    • Make sure that the special tool is located correctly to the fuel injector prior to removing the fuel injector.
    • Make sure that the special tool is held square to the fuel injector during removal.
    • Make sure that all open ports are covered to prevent any foreign material ingress.
    NOTE: RH illustration shown, LH is similar.
    G11419158

    Special Tool(s):  310-197

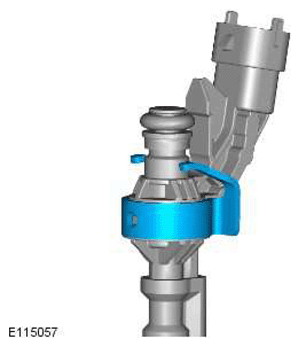

  18. CAUTION:
    • If the fuel injector is being removed without a new component being installed, the fuel injector clamp must remain with the fuel injector it is removed with.
    • If new fuel injectors are installed, a new injector clamp must be installed.
    G11419159
  19. CAUTION:
    • Do not use a knife to remove the Teflon seal as damage could occur to the fuel injector.
    • Do not cut the Teflon seal to deep as damage could occur to the fuel injector.
    • Pinch the Teflon seal to allow the tool to cut the Teflon seal without damaging the fuel injector.

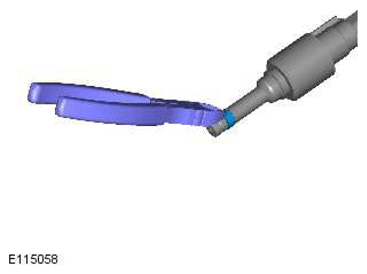

    G11419160

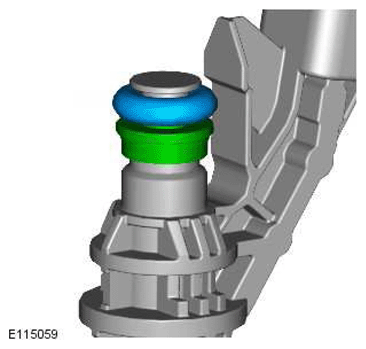

  20. CAUTION: Do not use any sharp tools to remove the O-ring seal as damage could occur to the fuel injector.
G11419161
