High Pressure Fuel Pump 2 - RWD (G1280007): Notes

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
19.45.30 HIGH PRESSURE FUEL PUMP - FRONT - RENEW 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 4WD 3.8
G11419284
19.45.30 HIGH PRESSURE FUEL PUMP - FRONT - RENEW 5000 CC, AJ V8, SUPERCHARGED 3.7
G11419285
19.45.30 HIGH PRESSURE FUEL PUMP - FRONT - RENEW LEFT HAND DRIVE, 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 2WD 3

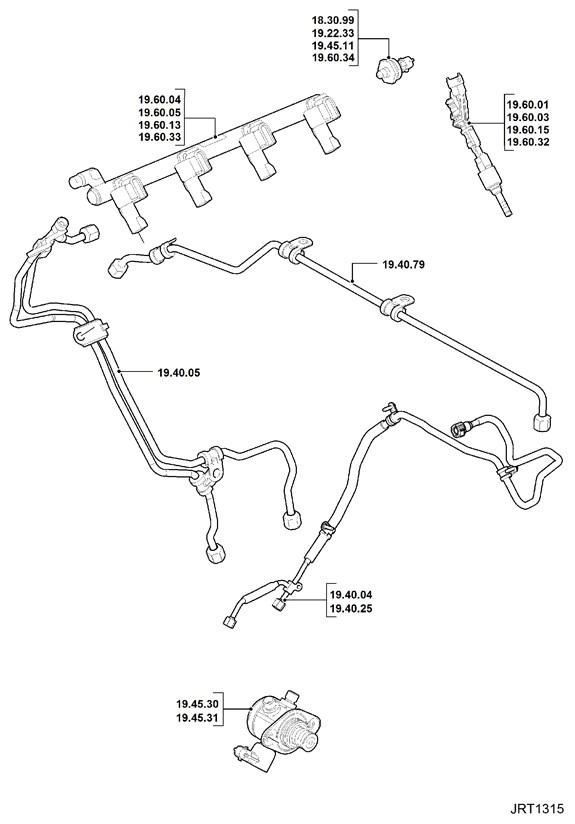

G11419286
19.45.30 HIGH PRESSURE FUEL PUMP - FRONT - RENEW RIGHT HAND DRIVE, 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 2WD 3
G11419287
19.45.31 HIGH PRESSURE FUEL PUMP - REAR - RENEW 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 4WD 4.1
G11419288
19.45.31 HIGH PRESSURE FUEL PUMP - REAR - RENEW 5000 CC, AJ V8, SUPERCHARGED 3.8

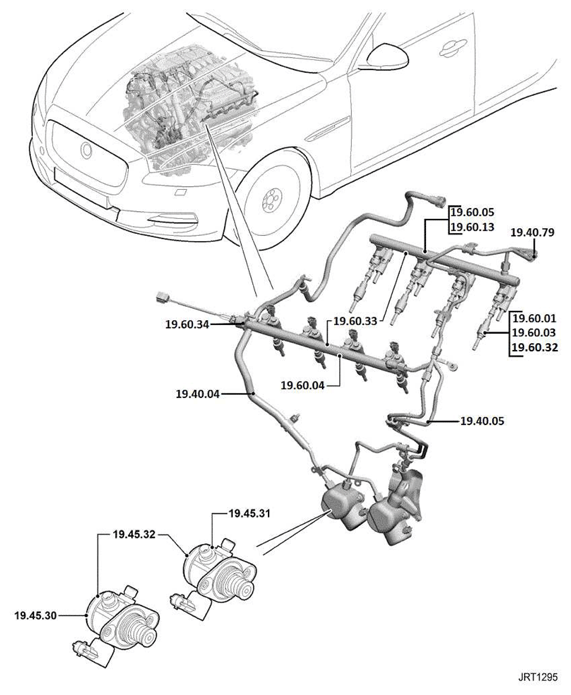

G11419289
19.45.31 HIGH PRESSURE FUEL PUMP - REAR - RENEW LEFT HAND DRIVE, 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 2WD 3
G11419290
19.45.31 HIGH PRESSURE FUEL PUMP - REAR - RENEW RIGHT HAND DRIVE, 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 2WD 3
G11419291
