High Pressure Fuel Pump 2 - RWD (G1280007): Installation

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

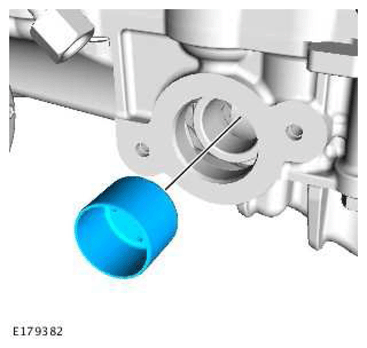

NOTE: Lubricate the fuel rail high-pressure fuel pump bucket with clean engine oil.
CAUTION: Tighten the Torx screws a turn at a time until the correct torque is achieved.

NOTE: Lubricate the fuel rail high-pressure fuel pump O-ring seal with clean engine oil.

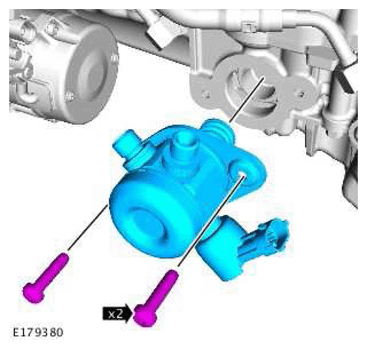

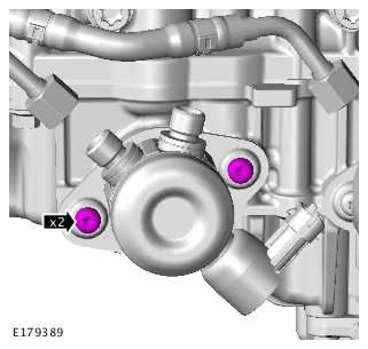

Install the high-pressure fuel pump.

Torque Specification: 12 Nm
Loosen the Torx screws half a turn each.
CAUTION:

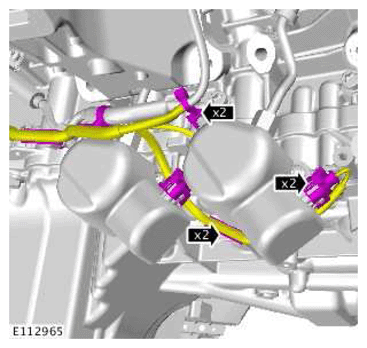

- Install new high-pressure fuel supply lines.
- Lubricate the high-pressure fuel supply line unions with clean engine oil.
NOTE:
- Engine shown removed for clarity.
- Remove and discard the blanking caps.

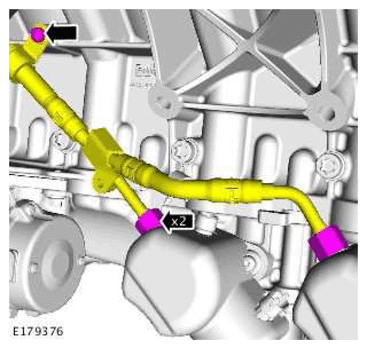

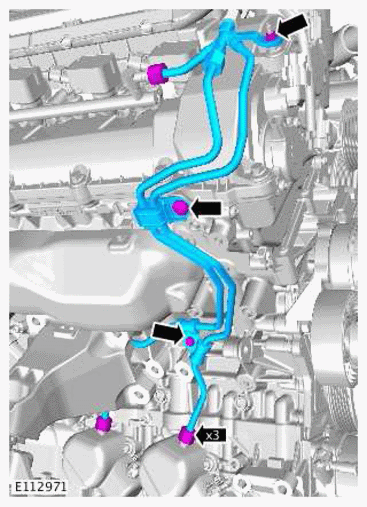

Install the high-pressure fuel supply lines, tighten the bolts and unions finger tight at stage.

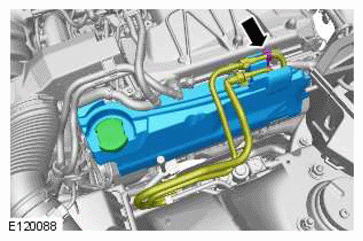

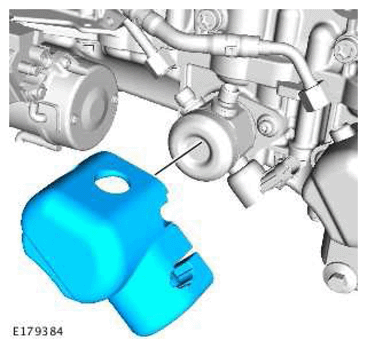

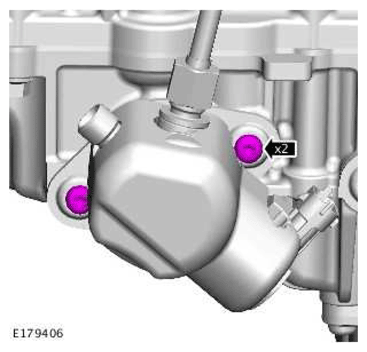

CAUTION: Care must be taken when positioning the fuel rail high-pressure fuel pump cover to one side.

Tighten the Torx screws.

Torque Specification: 12 Nm
Lower the vehicle.
CAUTION: Lubricate only the union threads with clean engine oil.

NOTE: Engine shown removed for clarity.

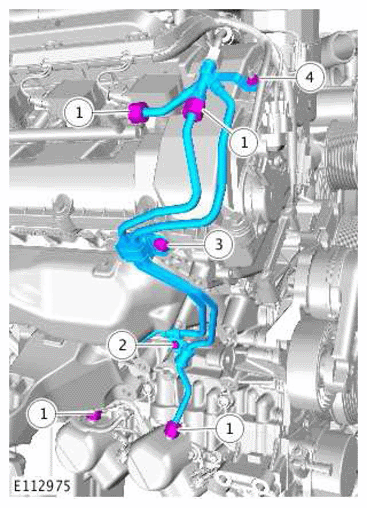

Fig 1: High-Pressure Fuel Supply Lines Nuts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specifications:

Unions (1) 21 Nm

M6 (2) 11 Nm

M8 (3) 25 Nm

M5 nut (4) 6 Nm
NOTE: Remove and discard the blanking caps.

Torque Specifications:

Unions 21 Nm

Bolt 12 Nm
NOTE: Install the bolt and unions finger tight before final tightening.

Torque Specifications:

Unions 21 Nm

M6 11 Nm
NOTE: Engine shown removed for clarity.

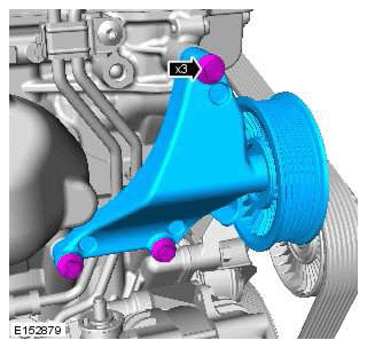

Torque Specifications:

M10 29 Nm

M6 11 Nm

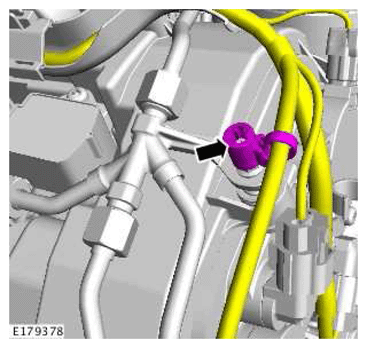

Torque Specification: 25 Nm
Refer to: Generator (Removal and Installation).
Refer to: Right Engine Mount - RWD (Removal and Installation).

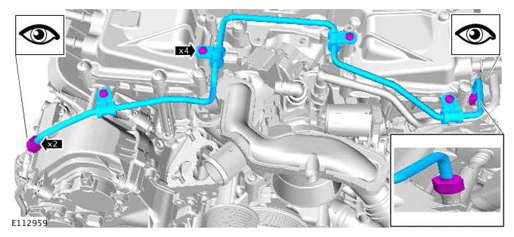

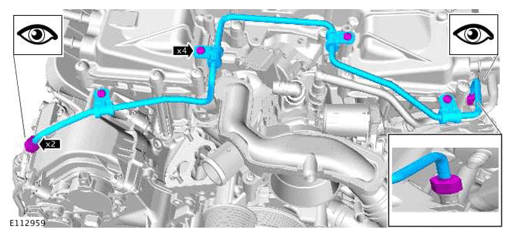

NOTE:
- Lubricate the union threads with clean engine oil.
- Do not tighten at this stage.
- Remove and discard the blanking caps.

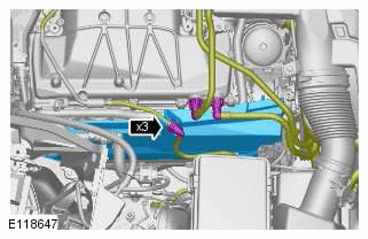

Torque Specifications:

Unions 21 Nm

Bolts 8 Nm
Refer to: Right Air Cleaner (Removal and Installation).
Refer to: Engine Cover - V6 S/C 3.0L Petrol (Interior Trim and Ornamentation, Removal and Installation).
Refer to: Battery Disconnect and Connect (General Procedures).
Refer to: Engine Oil Draining and Filling (General Procedures).
