High Pressure Fuel Pump 1 - RWD (G1280008): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable mixtures are always present and may ignite. Failure to follow these instructions may result in personal injury.
CAUTION: Make sure that tools and equipment are clean, free of foreign material and lubricant.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions (Description and Operation).
  2. Refer to: Fuel System Pressure Release - V6 S/C 3.0L Petrol/V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol (General Procedures).
  3. Refer to: Battery Disconnect and Connect (General Procedures).
  4. Refer to: Engine Cover - V6 S/C 3.0L Petrol (Interior Trim and Ornamentation, Removal and Installation).
  5. Refer to: Engine Oil Draining and Filling (General Procedures).
  6. Refer to: Fuel Injection Component Cleaning (General Procedures).

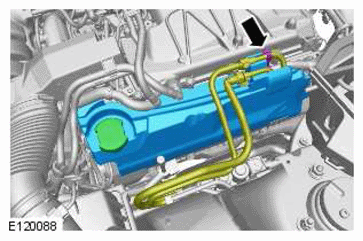

  7. G11419255
  8. CAUTION: Be prepared to collect escaping fluids.

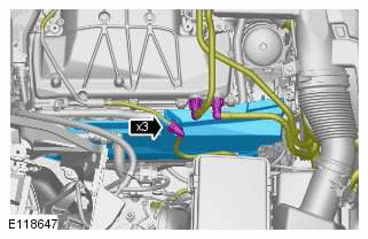

    G11419256
  9. Refer to: Right Air Cleaner (Removal and Installation).
  10. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.

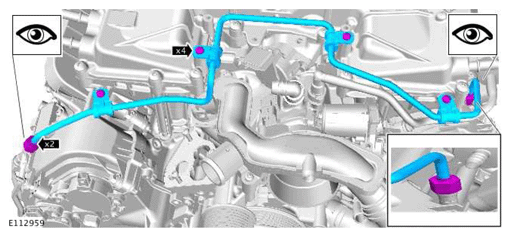

    G11419257

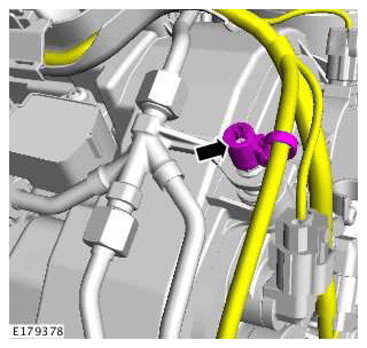

  11. G11419258
  12. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.

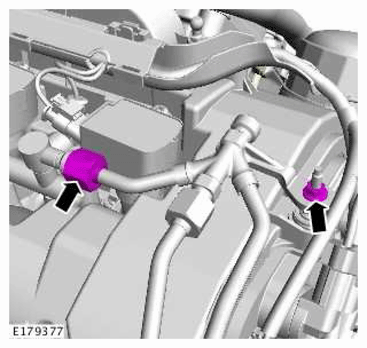

    G11419259
  13. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  14. Refer to: Right Engine Mount - RWD (Removal and Installation).

  15. Refer to: Generator (Removal and Installation).

  16. NOTE: Engine shown removed for clarity.

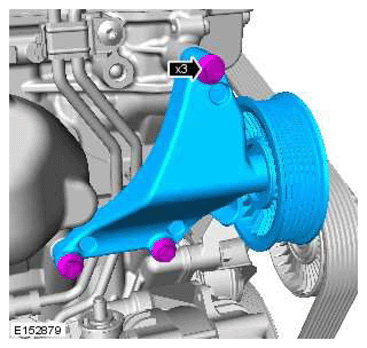

    G11419260
  17. NOTE: Engine shown removed for clarity.
    G11419261
  18. NOTE: Engine shown removed for clarity.

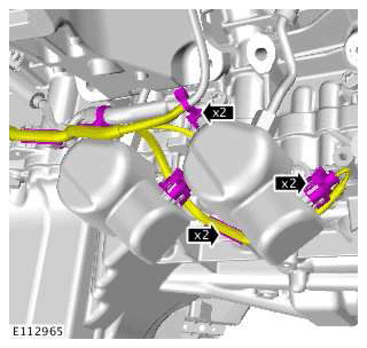

    G11419262
  19. CAUTION: Make sure that all openings are sealed. Use new blanking caps.

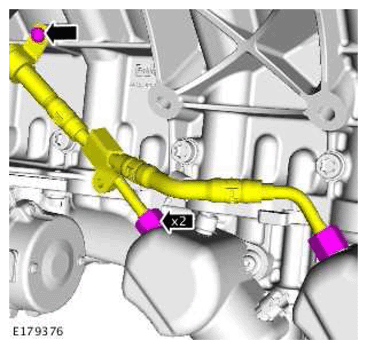

    G11419263
  20. CAUTION:
    • Remove and discard the high-pressure fuel supply lines.
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    NOTE: Engine shown removed for clarity.

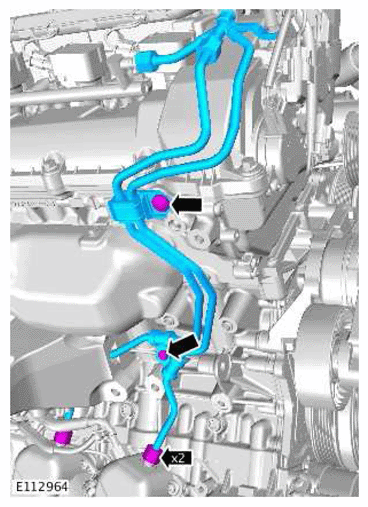

    G11419264

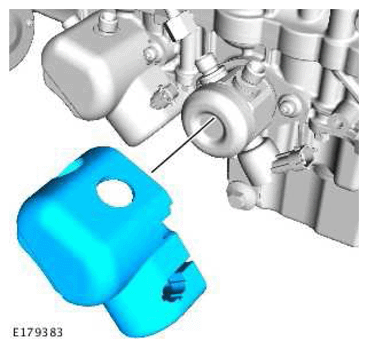

  21. G11419265
  22. CAUTION: Be prepared to collect escaping fluids.

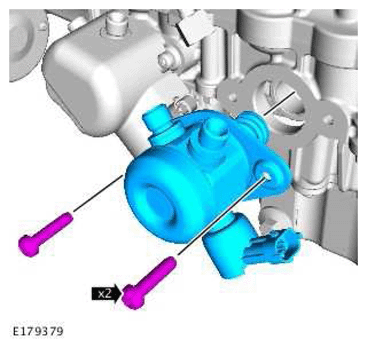

    G11419266

    Loosen the Torx screws a turn each at a time.

  23. CAUTION: Be prepared to collect escaping fluids.

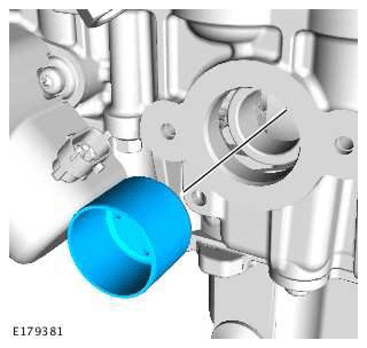

G11419267
