High Pressure Fuel Pump 1 - AWD (G1574232): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Before any work is carried out on the fuel system, ground the vehicle to earth and maintain the ground connection until the work is complete.
  • Do not carry out any repairs to the fuel system with the engine running. Failure to follow this instruction may result in personal injury.
  • Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable mixtures are always present and may ignite. Failure to follow these instructions may result in personal injury.
  • After carrying out repairs, the fuel system must be checked visually for leaks. Failure to follow these instructions may result in personal injury.
CAUTION:
  • Do not allow the unions to hit the olive ends of the high-pressure fuel supply line as this may damage the ends of the high-pressure fuel supply line and allow foreign matter to enter the fuel injection system.
  • Do not remove the fuel rail pressure sensor from the fuel injection diverter rail.
  • Make sure the workshop area in which the vehicle is being worked on is as clean and as dust free as possible. Foreign matter from work on clutches, brakes or from machining or welding operations can contaminate the fuel system and may result in later malfunction.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Make sure that all openings are sealed. Use new blanking caps.
  1. Refer to: Fuel System Pressure Release - V6 S/C 3.0L Petrol/V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol (General Procedures).
  2. Refer to: Battery Disconnect and Connect (General Procedures).
  3. Drain the engine oil.

    Refer to: Engine Oil Vacuum Draining and Filling (General Procedures).

  4. Refer to: Engine Cover - V6 S/C 3.0L Petrol (Interior Trim and Ornamentation, Removal and Installation).
  5. Refer to: Fuel Injection Component Cleaning  (General Procedures).

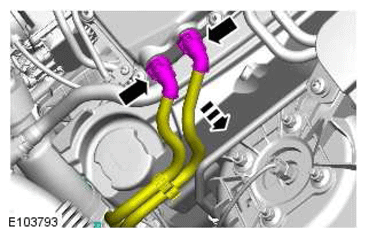

  6. WARNING: Be prepared to collect escaping fluids.
    G11419329

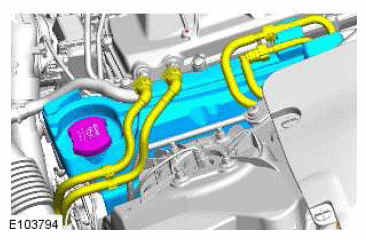

  7. G11419330

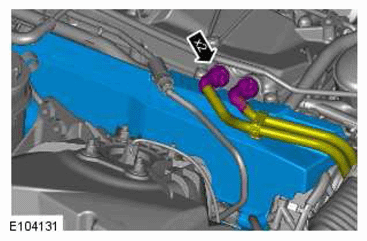

  8. WARNING: Be prepared to collect escaping fluids.
    G11419331
  9. Refer to: Right Air Cleaner (Removal and Installation).

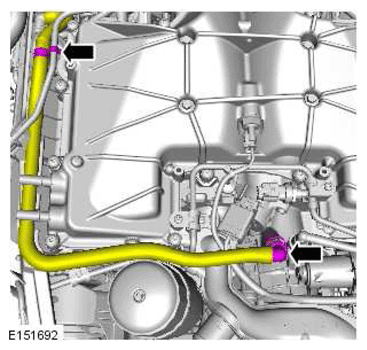

  10. CAUTION: Be prepared to collect escaping fluids.
    G11419332

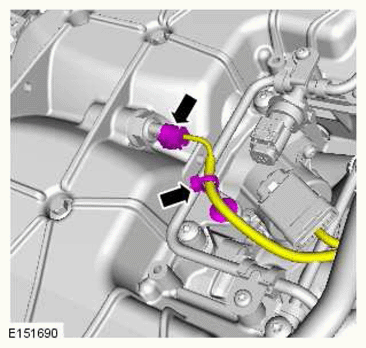

  11. G11419333

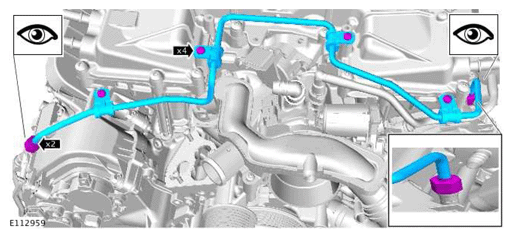

  12. CAUTION: Be prepared to collect escaping fluids.
    G11419334

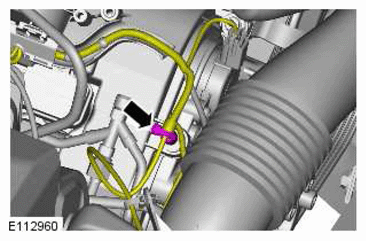

  13. G11419335

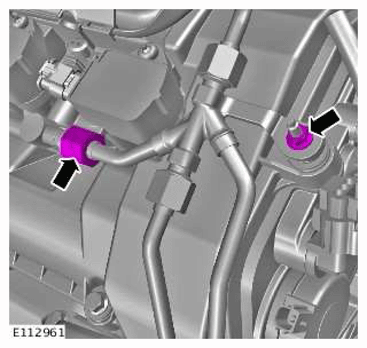

  14. CAUTION: Be prepared to collect escaping fluids.
    G11419336
  15. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  16. Refer to: Air Deflector (Removal and Installation).
  17. Refer to: Front Right Halfshaft (Removal and Installation).
  18. Refer to: Right Engine Mount - AWD (Removal and Installation).
  19. Refer to: Generator (Removal and Installation).

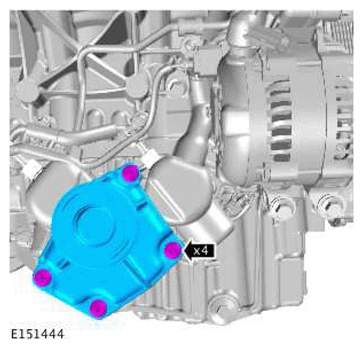

  20. G11419337

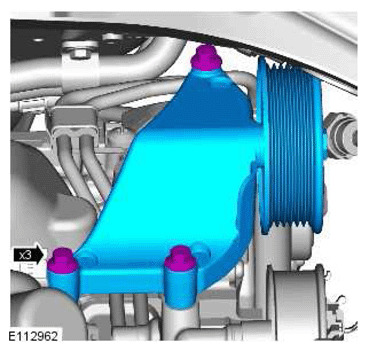

  21. G11419338

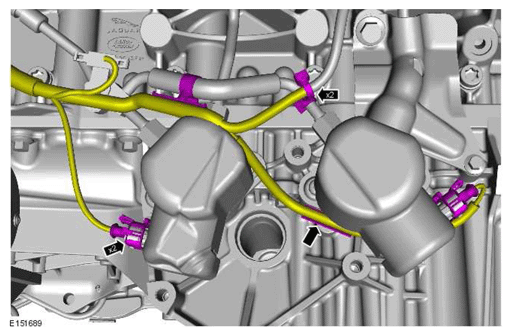

  22. NOTE: Engine shown removed for clarity.
    G11419339
  23. CAUTION: Be prepared to collect escaping fluids.
    NOTE: Engine shown removed for clarity.
    G11419340

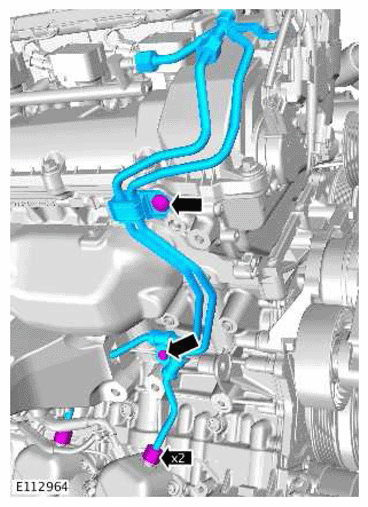

  24. CAUTION:
    • Be prepared to collect escaping fluids.
    • Remove and discard the high-pressure fuel supply lines.
    NOTE: Engine shown removed for clarity.
    G11419341

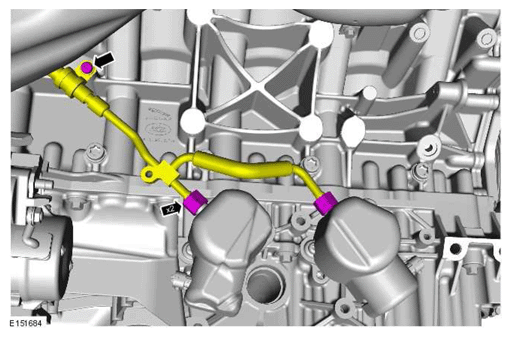

  25. CAUTION: Be prepared to collect escaping fluids.
    G11419342

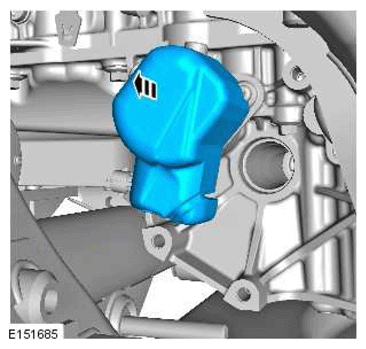

  26. G11419343

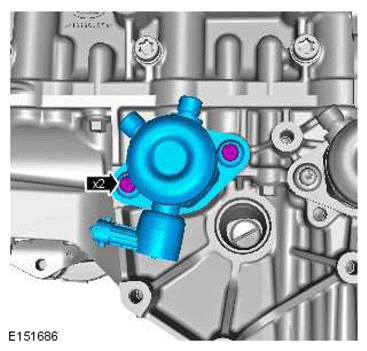

  27. CAUTION: Be prepared to collect escaping fluids.
    G11419344

    Loosen the Torx screws a turn each at a time.

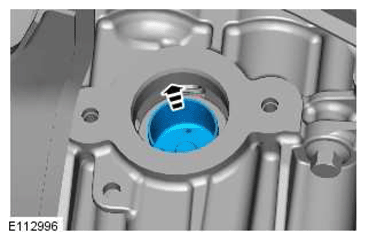

  28. CAUTION: Be prepared to collect escaping fluids.
    G11419345
