Component Location - Models Without Stop/Start System

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

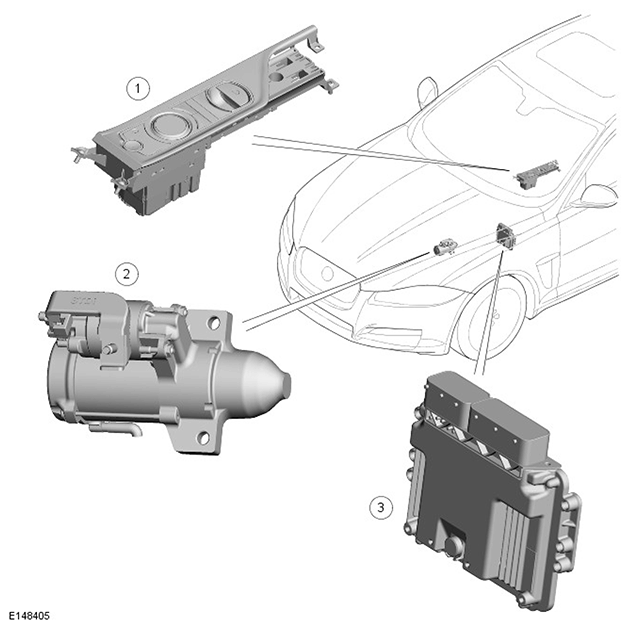

G11416470
ITEM DESCRIPTION
1 Transmission Control Switch (TCS) - engine stop/start switch
2 Starter motor
3 Engine Control Module (ECM)
