Component Location - Models With Stop/Start System (From 2014 My)

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

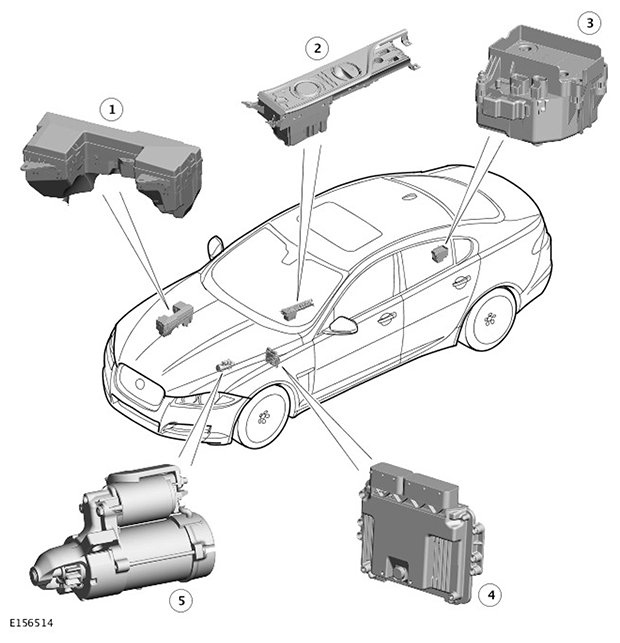

G11416471
ITEM DESCRIPTION
1 Engine Junction Box (EJB)
2 Transmission Control Switch (TCS) - engine stop/start switch
3 Dual Battery Junction Box (DBJB)
4 Engine Control Module (ECM)
5 Tandem Solenoid Starter (TSS) motor
