Starter Motor (G1779718): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Air Deflector (Front End Body Panels, Removal and Installation).

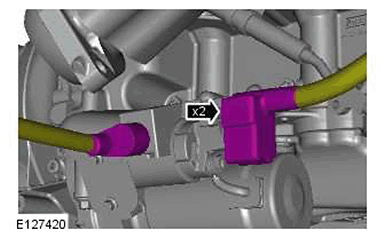

  4. G11421987
  5. NOTE: Vehicles with stop/start.

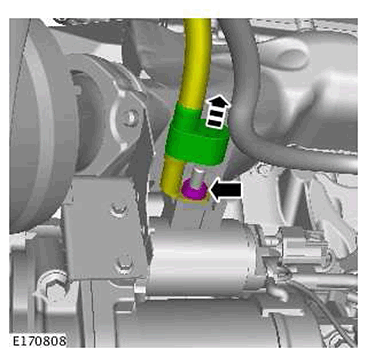

    G11421988
    • Torque: 10 Nm

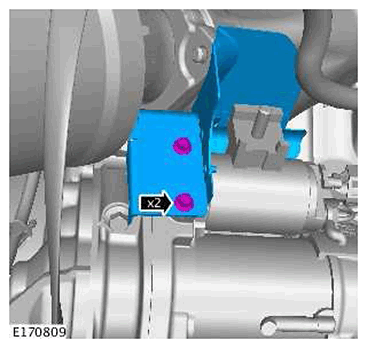

  6. G11421989
    • Torque: 6 Nm

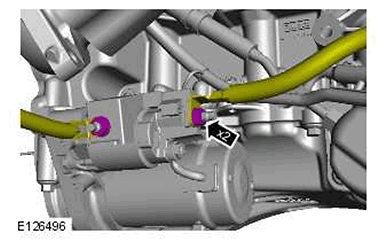

  7. G11421990

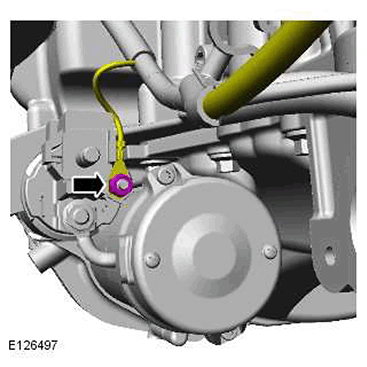

  8. G11421991
  9. NOTE: Vehicles with stop/start.

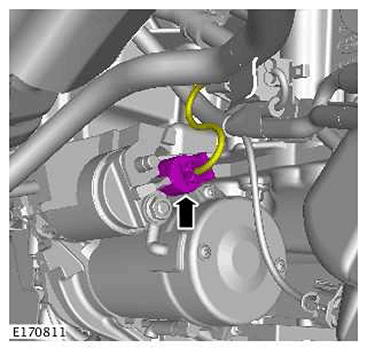

    G11421992

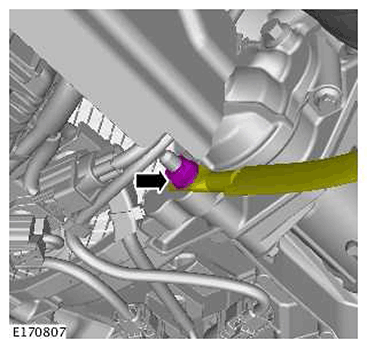

  10. G11421993
    • Torque: 48 Nm

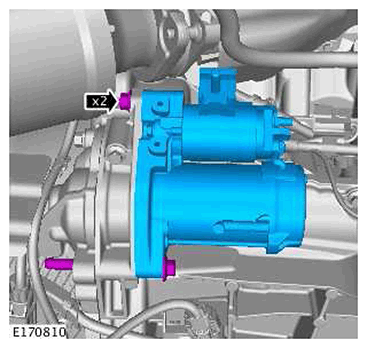

  11. G11421994

    Torque: 48 Nm
