Control Diagram
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired; D
= High Speed (HS) Controller Area Network (CAN) bus; N
= Medium Speed (MS) Controller Area Network (CAN) bus.

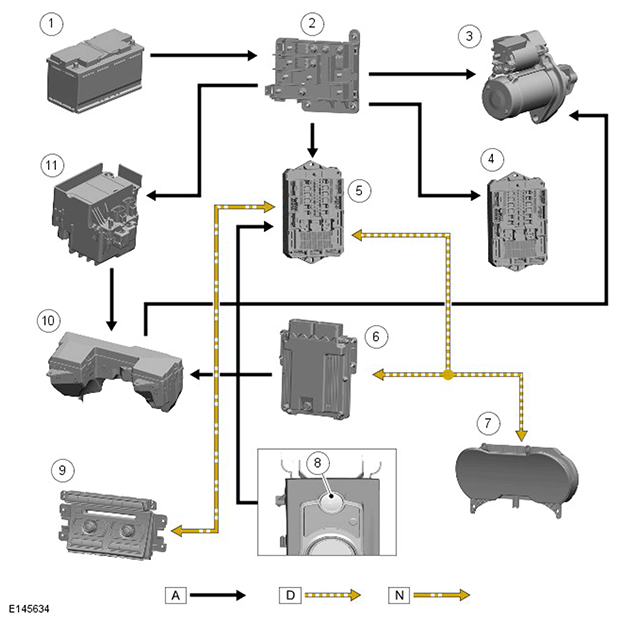

| ITEM | DESCRIPTION |
|---|---|
| 1 | Primary battery |
| 2 | Battery Junction Box (BJB) |
| 3 | Tandem Solenoid Starter (TSS) motor |
