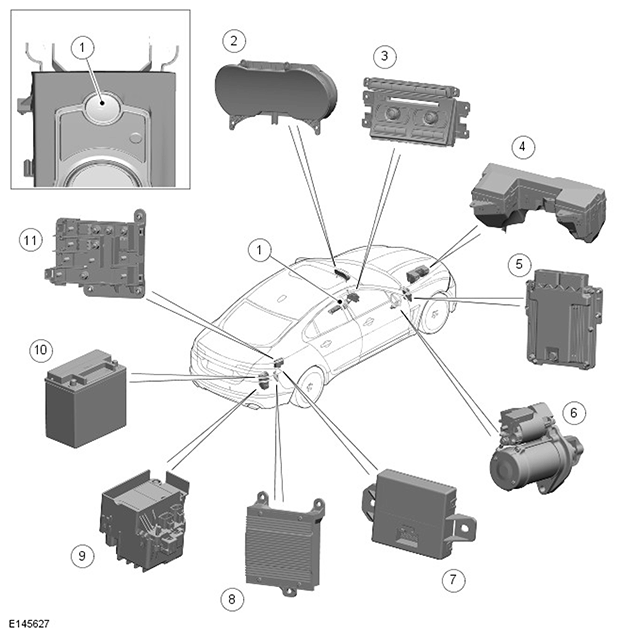

Component Location
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Stop/Start switch |
| 2 | Instrument Cluster (IC) |
| 3 | Integrated Control Panel (ICP) (ECO switch) |
| 4 | Engine Junction Box (EJB) |
| 5 | Engine Control Module (ECM) |
| 6 | Tandem Solenoid Starter (TSS) motor |
| 7 | Gateway Module (GWM) |
| 8 | Dual Battery Module (DBM) |
| 9 | Dual Battery Junction Box (DBJB) |
| 10 | Secondary battery |
| 11 | Battery Junction Box (BJB) |
