Manifold Absolute Pressure Sensor (G1217904): Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Engine Cover - V8 S/C 5.0L Petrol (Interior Trim and Ornamentation, Removal and Installation).
  2. Refer to: Cowl Vent Screen (Front End Body Panels, Removal and Installation).
  3. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

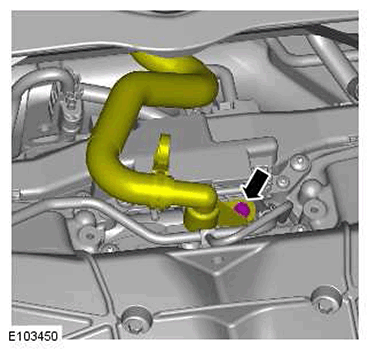

    G11416977

    Torque Specification: 10 Nm

  4. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

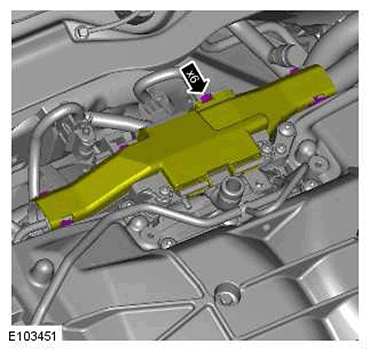

    G11416978
  5. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

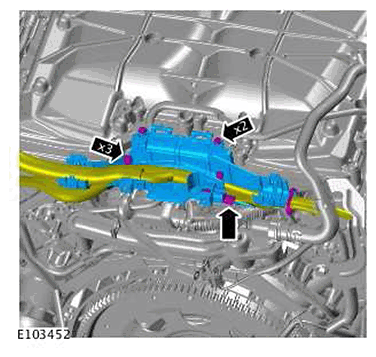

    G11416979

    Torque Specification: 10 Nm

  6. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

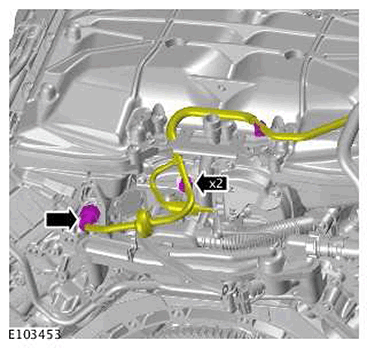

    G11416980
  7. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

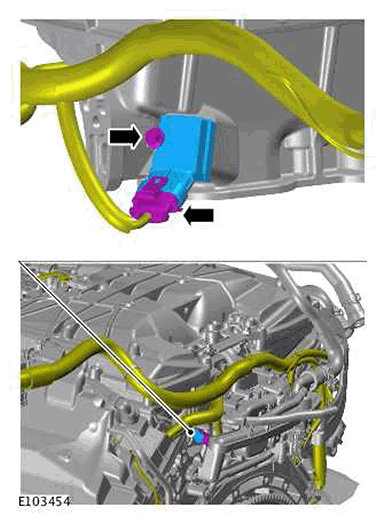

    G11416981

    Torque Specification: 5 Nm
