Left Heated Oxygen Sensor (G1190272): Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. Refer to: Air Deflector (Front End Body Panels, Removal and Installation).
  4. Refer to: Left Catalytic Converter (Exhaust System - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  5. CAUTION: Note the fitted position of the component prior to removal.

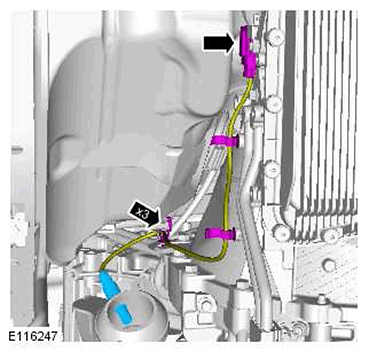

    G11416959
  6. CAUTION: Make sure that the mating faces are clean and free of foreign material.

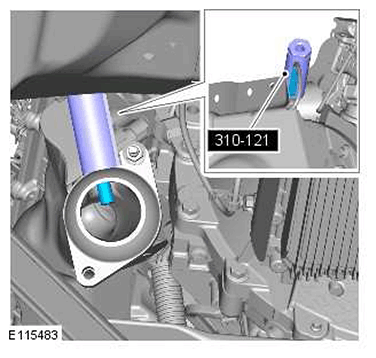

    G11416960

    Special Tool(s):  310-121

    Torque Specification: 48 Nm
