Engine Coolant Temperature Sensor (G1085873): Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Removal steps in this procedure may contain installation details.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Refer to: Cooling System Partial Draining and Vacuum Filling (Engine Cooling - V6 S/C 3.0L Petrol, General Procedures).

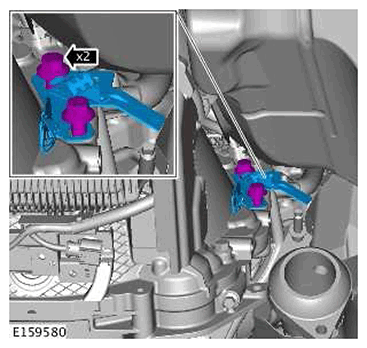

Refer to: Right Catalytic Converter (Exhaust System - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
Torque Specification: 48 Nm
WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.

CAUTION: Engine coolant will damage the paint finished surfaces. If spilt, immediately remove the coolant and clean the area with water.

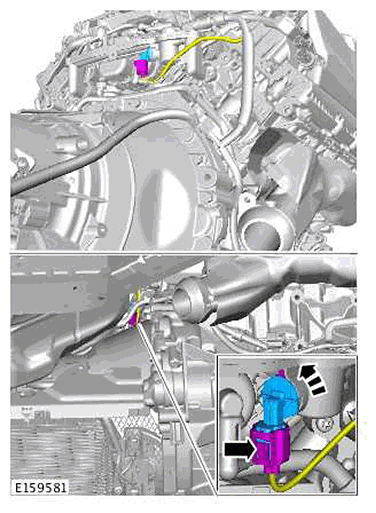

Lift the tang and rotate the engine coolant temperature (ECT) sensor counter clockwise.
