Engine Control Module (G1085872): Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  2. Refer to: Cowl Vent Screen (Front End Body Panels, Removal and Installation).
  3. Refer to: Secondary Bulkhead Left Panel - TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol (Front End Body Panels, Removal and Installation).

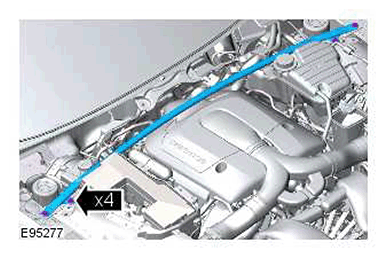

  4. G11416922

    Torque Specification: 25 Nm

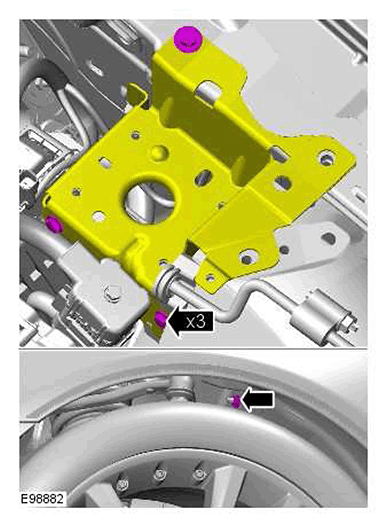

  5. G11416923

    Torque Specification: 25 Nm

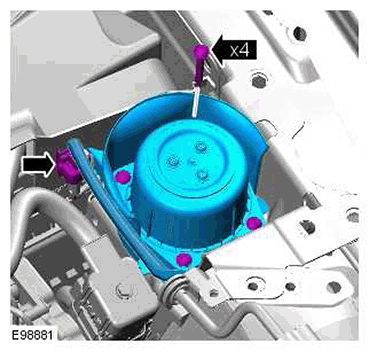

  6. G11416924

    Torque Specification: 8 Nm

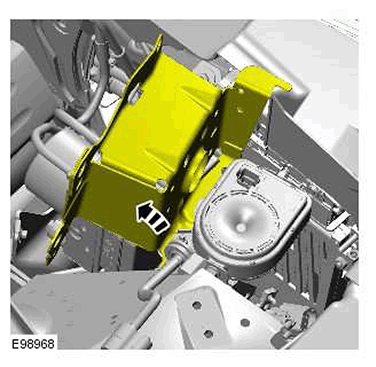

  7. G11416925

    Torque Specification: 6 Nm

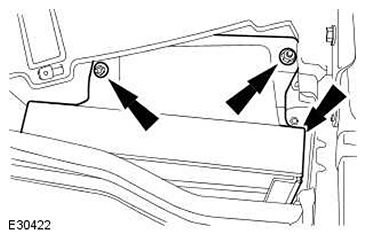

  8. G11416926

    Torque Specification: 10 Nm

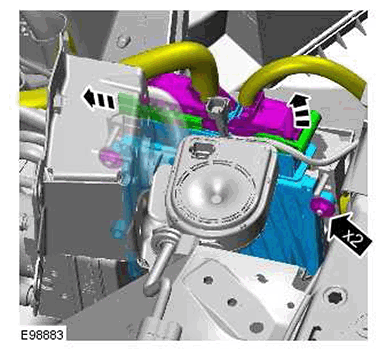

  9. G11416927
