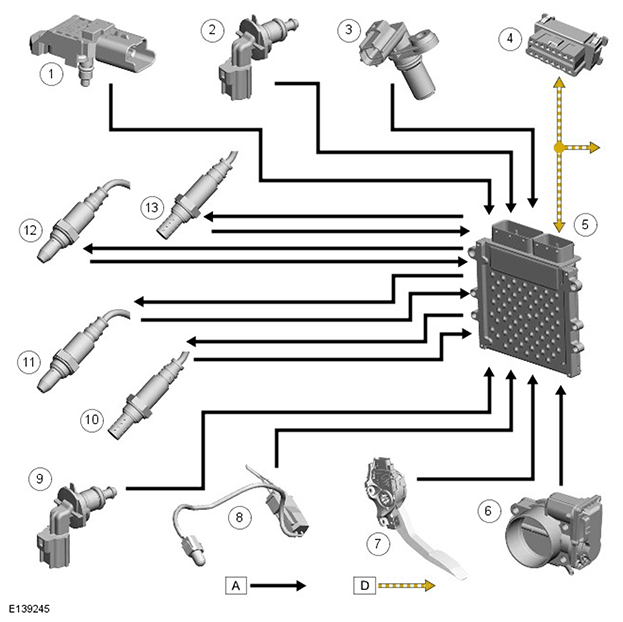

Control Diagram Sheet 2 Of 3
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | MAP (manifold absolute pressure) sensor |
| 2 | ECT (engine coolant temperature) sensor (ECT 2) |
| 3 | CKP (crankshaft position) sensor |
| 4 | Diagnostic socket |
| 5 | To other system control modules |
| 6 | ECM |
| 7 | Electronic throttle |
| 8 | APP (accelerator pedal position) sensor |
| 9 | Ambient Air Temperature (AAT) sensor |
| 10 | ECT sensor (ECT 1) |
| 11 | LH upstream HO2S (heated oxygen sensor) |
| 12 | LH downstream HO2S |
| 13 | RH downstream HO2S |
| 14 | RH upstream HO2S |
