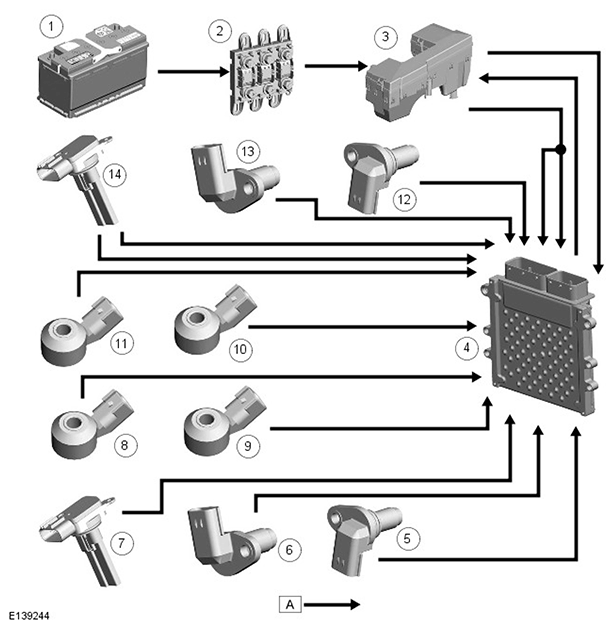

Control Diagram Sheet 1 Of 3
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | BJB (battery junction box) |
| 3 | EJB (engine junction box) |
| 4 | ECM (engine control module) |
| 5 | LH (left-hand) intake CMP (camshaft position) sensor |
| 6 | LH exhaust CMP sensor |
| 7 | LH MAFT (mass air flow and temperature) sensor |
| 8 | LH front knock sensor |
| 9 | LH rear knock sensor |
| 10 | RH (right-hand) rear knock sensor |
| 11 | RH front knock sensor |
| 12 | RH intake CMP sensor |
| 13 | RH exhaust CMP sensor |
| 14 | RH MAFT sensor |
