Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable.
Refer to: Battery Disconnect and Connect (General Procedures).
Refer to: Instrument Panel Console (Removal and Installation).
CAUTION:
- Take extra care not to damage the clips or screw threads. Failure to follow this instruction may result in damage to the climate control assembly.
- Make sure that the component is correctly located on the locating dowels.

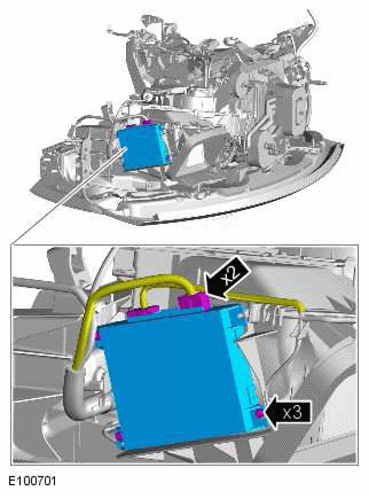

NOTE: RHD illustration shown, LHD is similar.

Torque Specification: 1.3 Nm
