Transmission Control Module And Main Control Valve Body (G1551381): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Be prepared to collect escaping fluids.

CAUTION: Make sure all suitable safety precautions are taken to protect the TCM and main control valve body electrical connector pins against electrostatic discharge.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

All vehicles

Refer to: Transmission Fluid Pan, Gasket and Filter (Removal and Installation).
Vehicles with Stop/Start

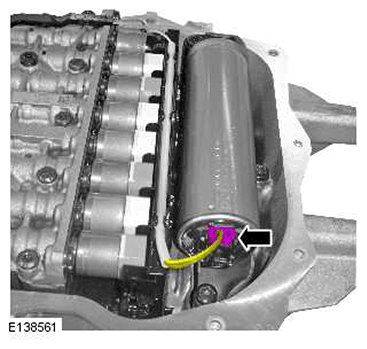

CAUTION: Take precautions to avoid any electrostatic charging, which could damage this component.

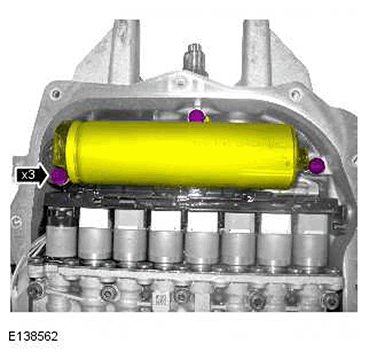

CAUTION: Remove and discard the O-ring seals.

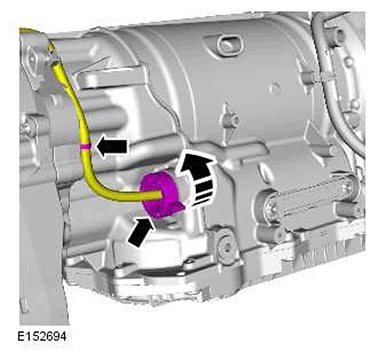

All vehicles

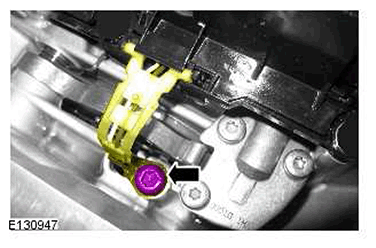

CAUTION:
- Take precautions to avoid any electrostatic charging, which could damage this component.
- Discard the bolts.

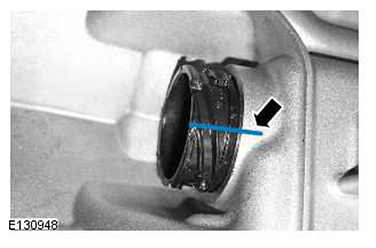

WARNING: Be prepared to collect escaping fluids.

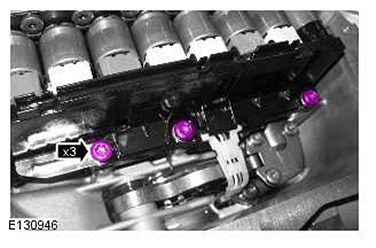

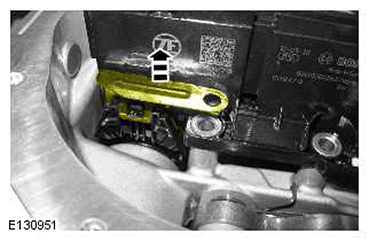

CAUTION: Discard the bolt.

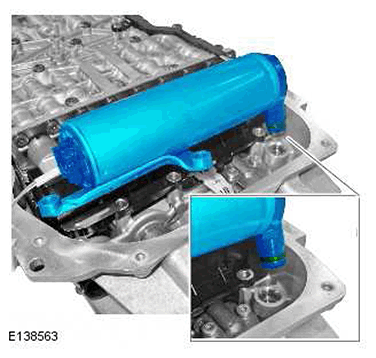

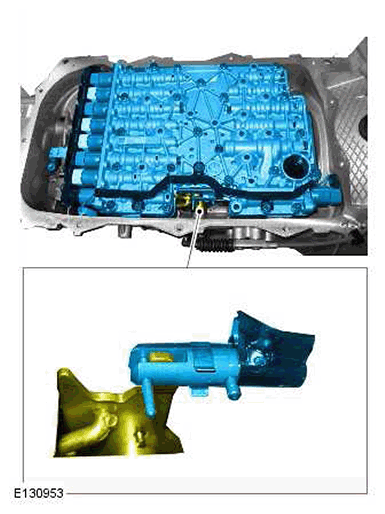

NOTE: Note the orientation of the component prior to removal.

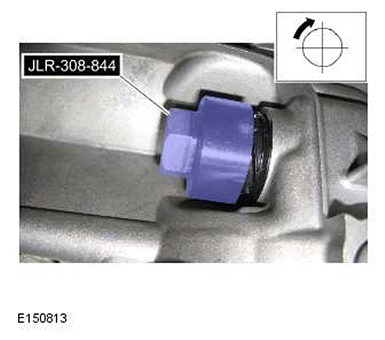

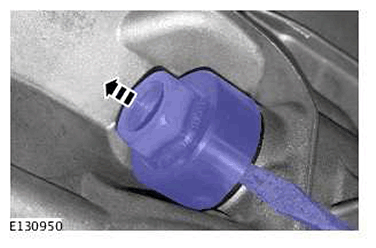

Special Tool(s): JLR-308-844

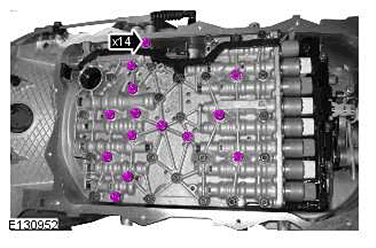

CAUTION: Discard the bolts.
NOTE: Note the position of the manual park brake release.
