Transmission (G1578930): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the transmission removed for clarity.
  1. Refer to: Battery Disconnect and Connect (General Procedures).
  2. Refer to: Engine Cover - V6 S/C 3.0L Petrol (Interior Trim and Ornamentation, Removal and Installation).
  3. Refer to: Cowl Vent Screen (Front End Body Panels, Removal and Installation).

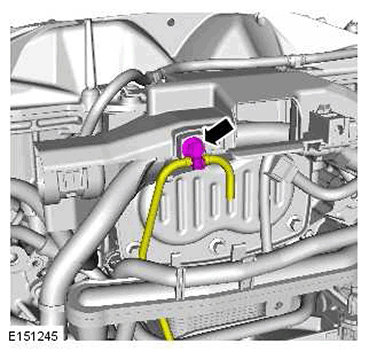

  4. G11417645

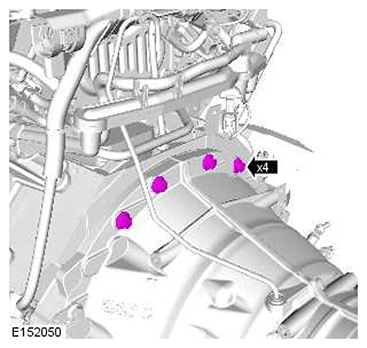

  5. G11417646

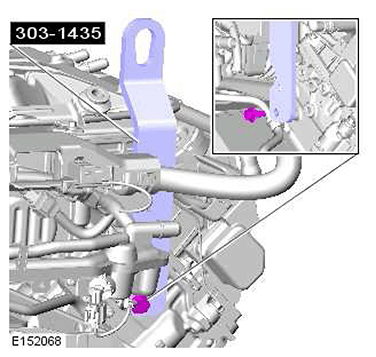

  6. G11417647
    • Special Tool(s): 303-1435
    • Torque: 25 Nm
  7. G11417648

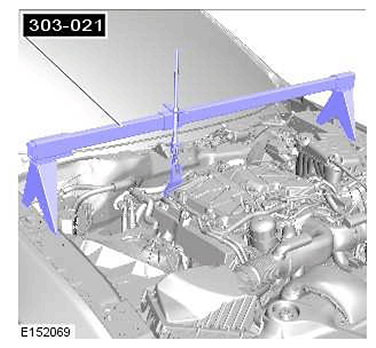

    Special Tool(s):  303-021

  8. Refer to: FRONT DRIVESHAFT - AWD (G1578767) (Removal and Installation).
  9. Refer to: Exhaust System - AWD (Removal and Installation).

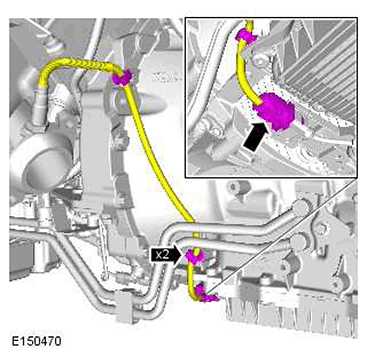

  10. G11417649

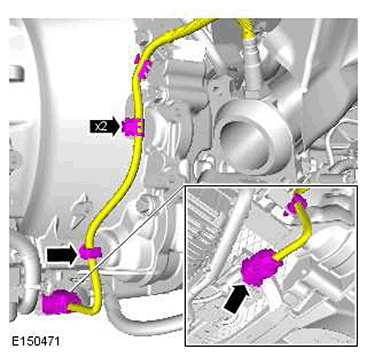

  11. G11417650
  12. CAUTION:
    • Be prepared to collect escaping fluids.
    • Remove and discard the O-ring seals.
    • Make sure that all openings are sealed. Use new blanking caps.

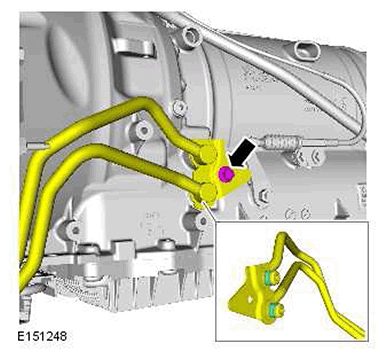

    G11417651

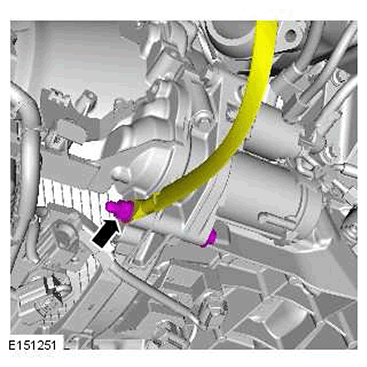

  13. G11417652

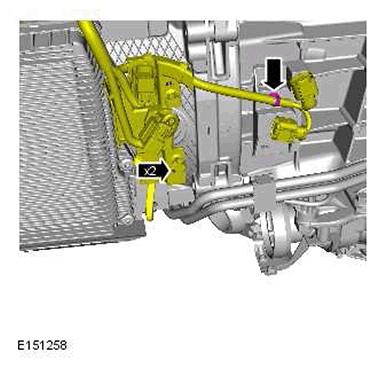

  14. G11417653
  15. NOTE: This step is only required if a new component is installed.

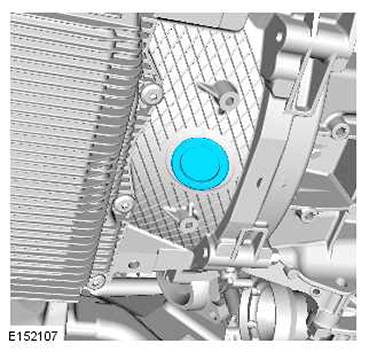

    G11417654

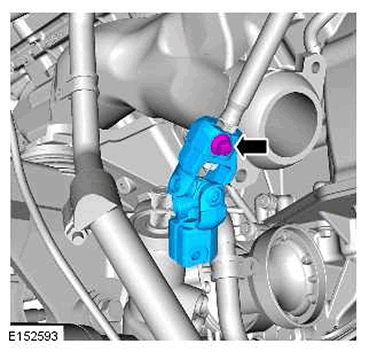

  16. CAUTION: Discard the bolt.
    G11417655

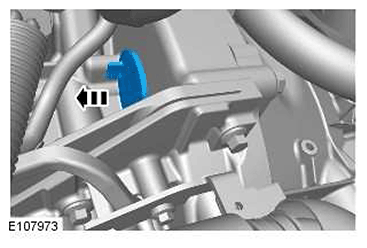

  17. G11417656
  18. CAUTION:
    • Only rotate the crankshaft clockwise.
    • Discard the bolts.

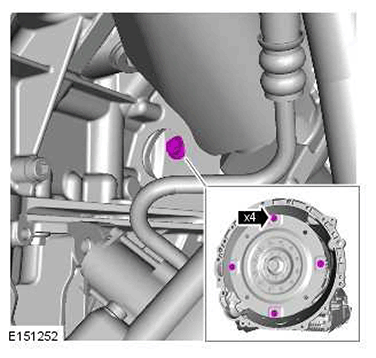

    G11417657

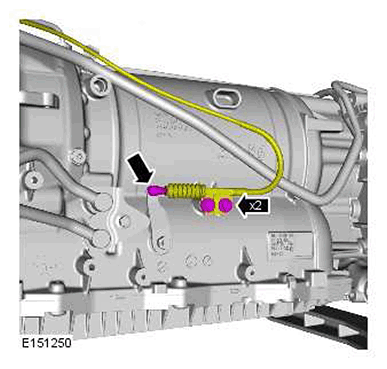

  19. G11417658

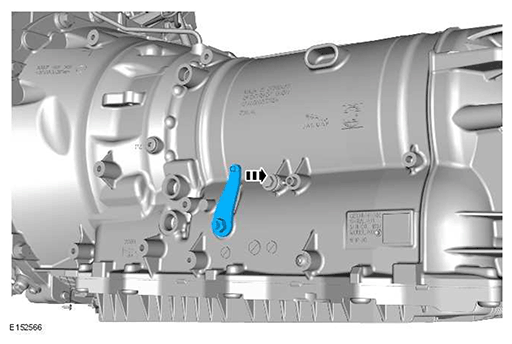

  20. G11417659
    • Secure with a cable tie.

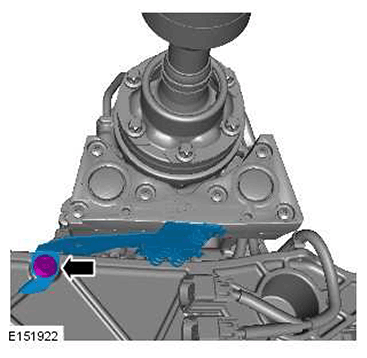

  21. G11417660

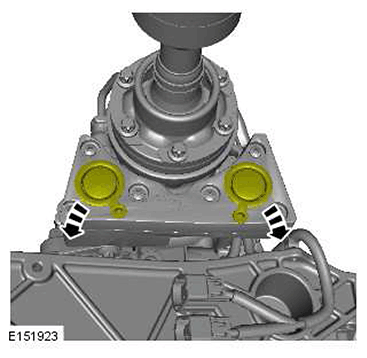

  22. G11417661
  23. CAUTION: Discard the nuts.

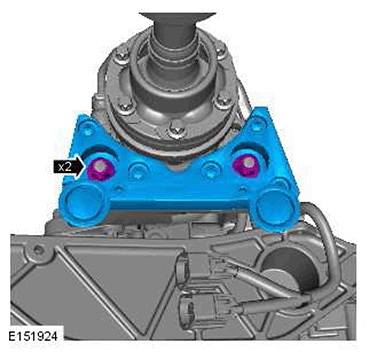

    G11417662
  24. CAUTION: Discard the bolts.
    NOTE: Mark the position of the driveshaft on the transmission flange.

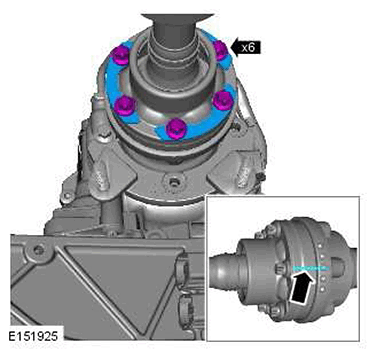

    G11417663
  25. CAUTION: Make sure that the driveshaft is supported with suitable retaining straps.
    NOTE:
    • Make sure that the special tool is correctly installed to the recess on the driveshaft.
    • Using a suitable hammer and drift, make sure that you only hit the corner edges of the special tool to remove the driveshaft.
    G11417664

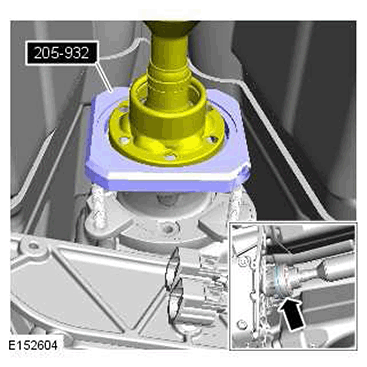

    Special Tool(s):  205-932

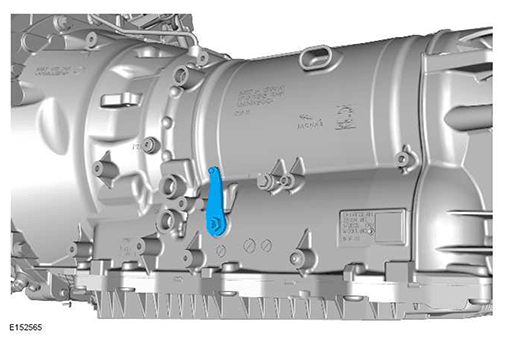

  26. G11417665
    • Remove the cable tie.
  27. WARNING: Make sure that the transmission is secured with suitable retaining straps.

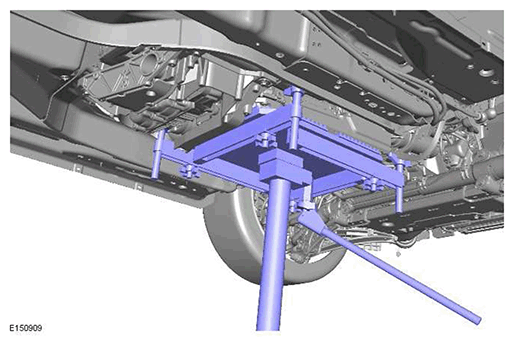

    G11417666

    Using a suitable hydraulic jack, support the transmission.

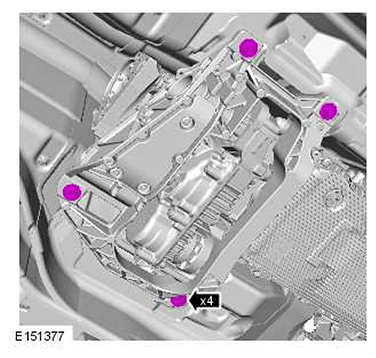

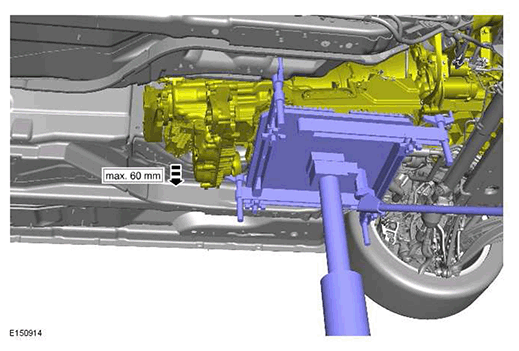

  28. G11417667
  29. CAUTION: Make sure that the transmission is lowered to the value indicated in the illustration.
    G11417668
  30. NOTE: Secure with cable ties.

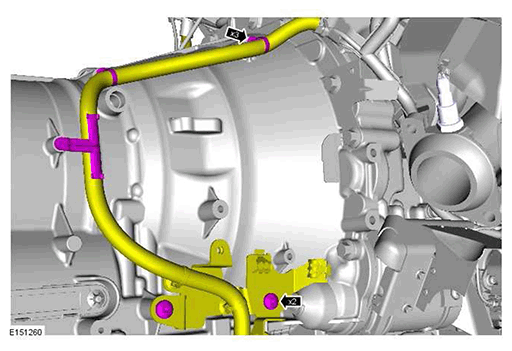

    G11417669

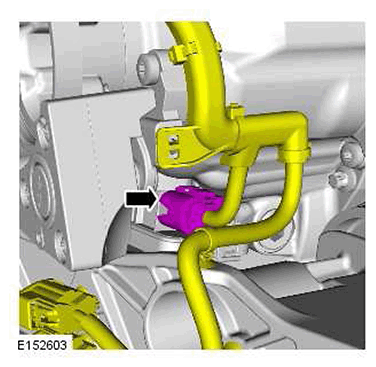

  31. G11417670

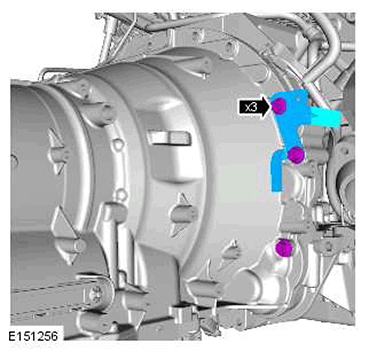

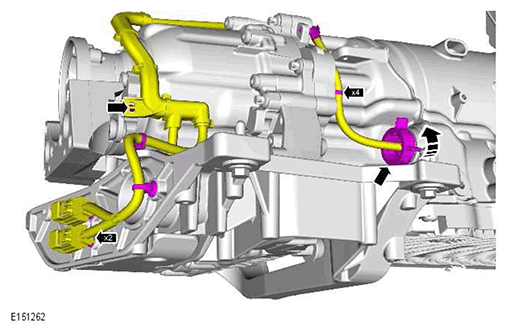

  32. G11417671

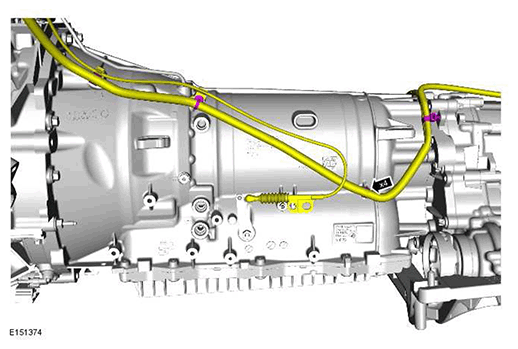

  33. NOTE: Secure with cable ties.
    G11417672

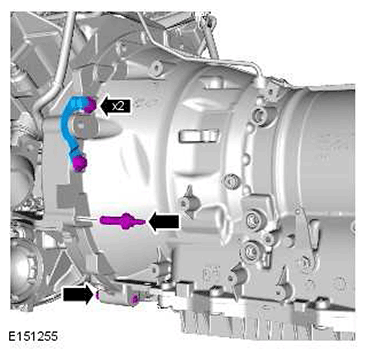

  34. G11417673
  35. G11417674
  36. WARNING: This step requires the aid of another technician.
    CAUTION:
    • Care must be taken to avoid damaging the surrounding components.
    • Make sure that the torque converter remains in the transmission.
    • Secure the torque converter to the transmission using suitable cable ties.

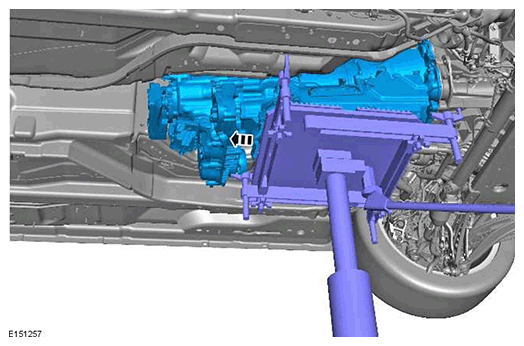

    G11417675
  37. CAUTION: Always plug any open connections to prevent contamination.

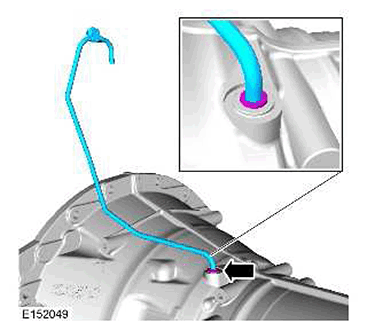

    G11417676

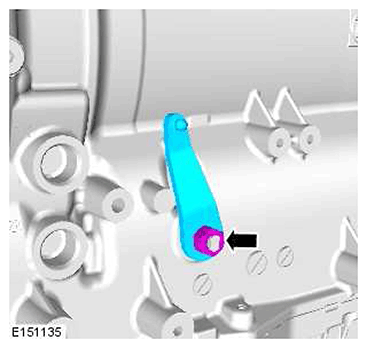

  38. NOTE: Do not disassemble further if the component is removed for access only.

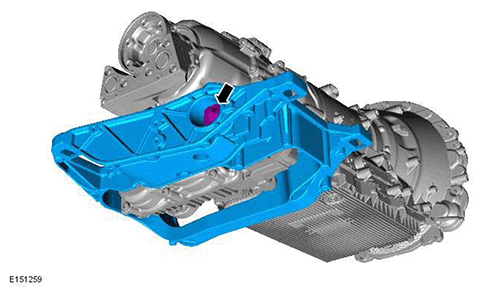

    G11417677
  39. G11417678

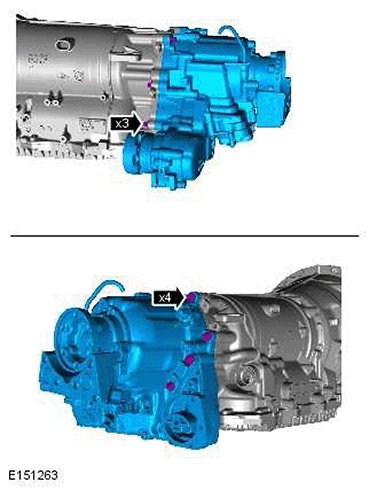

  40. G11417679
