Extension Housing Seal (G1551380): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Transfer Case (Removal).
  4. CAUTION: Care must be taken to avoid damage to the seal register and running surface.

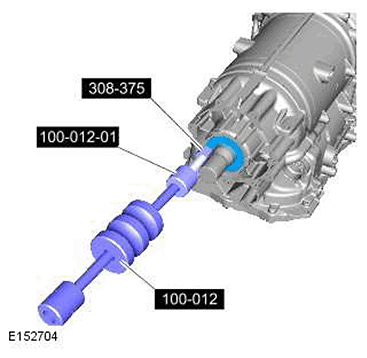

    G11417587

    Special Tool(s):  100-012, 100-012-01, 308-375
