Extension Housing Seal (G1551380): Installation

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION:
    • Oil seals must be fitted dry.
    • Make sure that the mating faces are clean and free of foreign material.

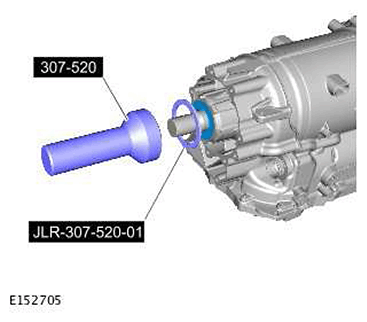

    G11417588

    Special Tool(s):  307-520, JLR-307-520-01

  2. Refer to: TRANSFER CASE (G1568865) (Installation).
  3. Refer to: Battery Disconnect and Connect (General Procedures).
  4. Refer to: Transmission Fluid Level Check  (AWD, General Procedures).
