Planetary Gear Sets 1, 2 and 3
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
The planetary gear sets 1 and 2 comprise:
- Sunwheel - shared by both gear sets
- 4 planetary gears per gear set
- Planetary gear carrier (spider) per gear set
- Ring gear per gear set.
The planetary gear set 3 comprises:
- Sunwheel
- 3 planetary gears
- Planetary gear carrier (spider)
- Ring gear.

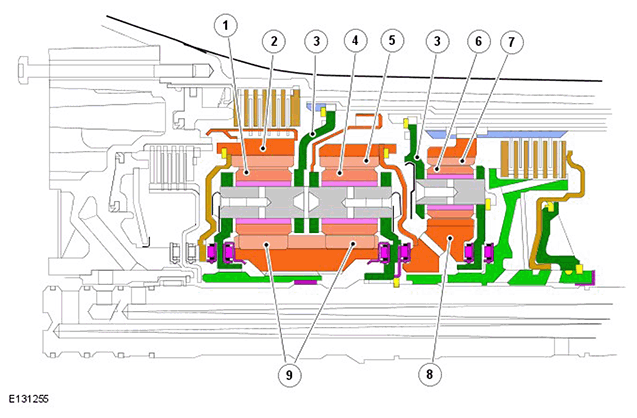

| ITEM | DESCRIPTION |
|---|---|
| 1 | Planetary gears - gear set 1 |
| 2 | Ring gear - gear set 1 |
| 3 | Planetary gear carrier (spider) |
| 4 | Planetary gears - gear set 2 |
| 5 | Ring gear - gear set 2 |
| 6 | Planetary gears - gear set 3 |
| 7 | Ring gear - gear set 3 |
| 8 | Sun wheel - gear set 3 |
| 9 | Sun wheel - joint gear sets 1 and 2 |
