Planetary Gear Set 4
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Rear Wheel Drive (RWD) shown, All Wheel Drive (AWD) similar

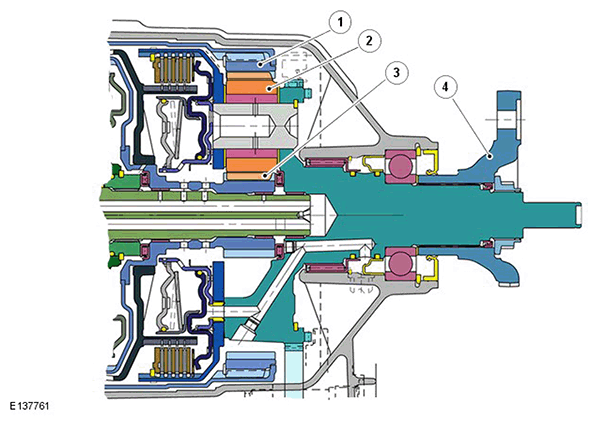

The planetary gear set 4 comprises:
- Sunwheel
- 4 planetary gears
- Planetary gear carrier (spider) - output shaft
- Ring gear.
| ITEM |
DESCRIPTION |
| 1 |
Ring gear |
| 2 |
Planetary gears |
| 3 |
Sun wheel |
| 4 |
Output shaft |
