Shift Elements
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

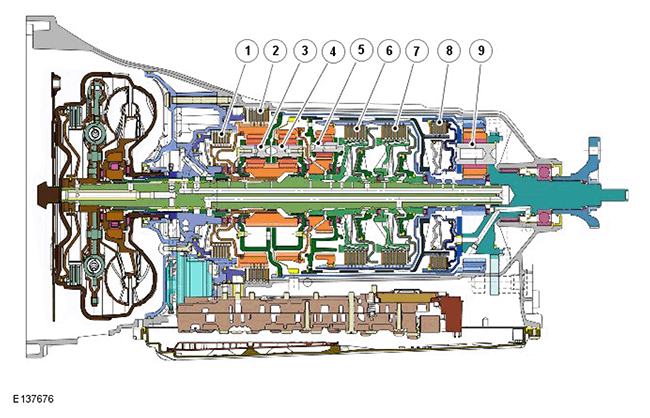

| ITEM | DESCRIPTION |
|---|---|
| 1 | Brake A |
| 2 | Brake B |
| 3 | Gear set 1 |
| 4 | Gear set 2 |
| 5 | Gear set 3 |
| 6 | Clutch E |
| 7 | Clutch C |
| 8 | Clutch D |
| 9 | Gear set 4 |
The shift elements, clutches and brakes are actuated hydraulically. Fluid pressure is applied to the required clutch and/or brake, pressing the plates together and allowing drive to be transmitted through the plates. The purpose of the shift elements is to perform power-on shifts with no interruption to traction and smooth transition between gear ratios.
