Instrument Cluster in Standard mode

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

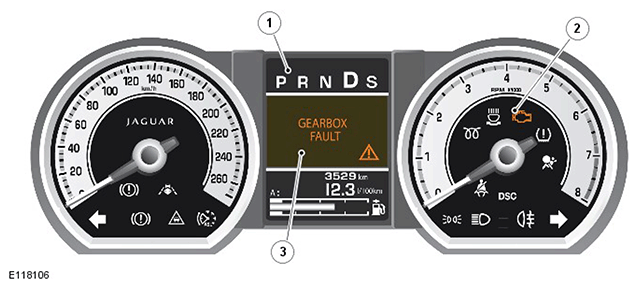

G11417531
ITEM DESCRIPTION
1 Transmission status display
2 Malfunction Indicator Lamp (MIL)
3 Message center

The instrument cluster is connected to the TCM via the high speed CAN (controller area network) bus. Transmission status is transmitted by the TCM and displayed to the driver in the instrument cluster. Refer to Instrument Cluster - DESCRIPTION AND OPERATION .
