Component Location - All Wheel Drive (AWD)

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

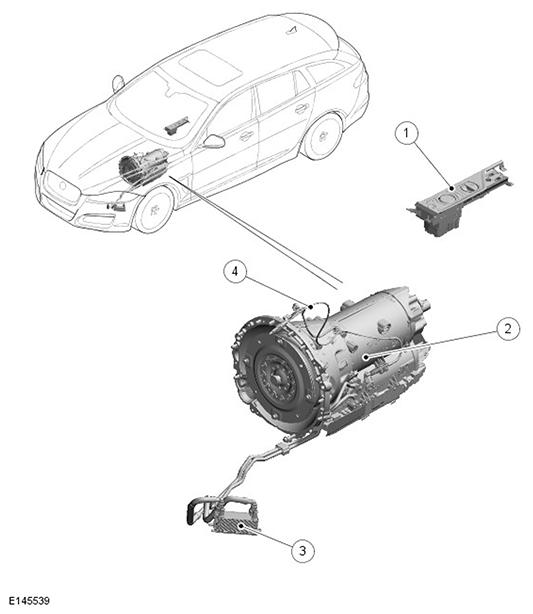

G11417527
ITEM DESCRIPTION
1 Transmission Control Switch (TCS)
2 Automatic transmission
3 Transmission fluid cooler
4 Emergency park release cable
