Transmission Control Module And Main Control Valve Body - GTDI 2.0L Petrol/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (G1451641): Notes

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
44.40.01 VALVE BODY ASSEMBLY - RENEW 2000 CC, GTDI 1.6
G11417306
44.40.01 VALVE BODY ASSEMBLY - RENEW 2200 CC, TD4 1.6
G11417307
44.40.01 VALVE BODY ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126), SUPERCHARGED 1.7
G11417308

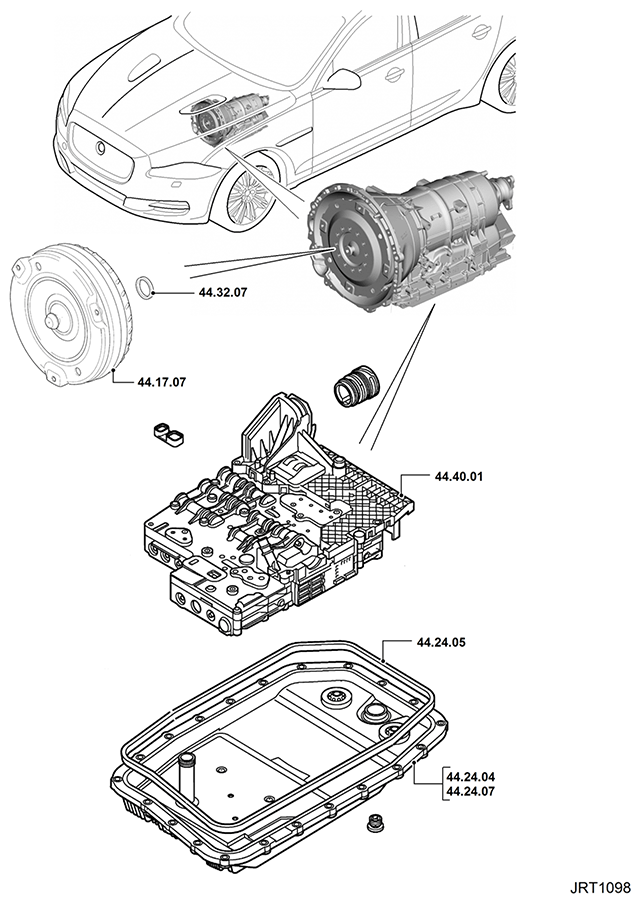

44.40.01 VALVE BODY ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 4WD 1.9
G11417309
44.40.01 VALVE BODY ASSEMBLY - RENEW 3000 CC, TDV6 1.5
G11417310
44.40.01 VALVE BODY ASSEMBLY - RENEW 5000 CC, AJ V8 1.9
G11417311
