Valve Cover (G1550169): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some illustrations may show the engine removed for clarity.
  • Removal steps in this procedure may contain installation details.
  1. Refer to: Engine Cover - GTDi 2.0L Petrol (Removal and Installation).

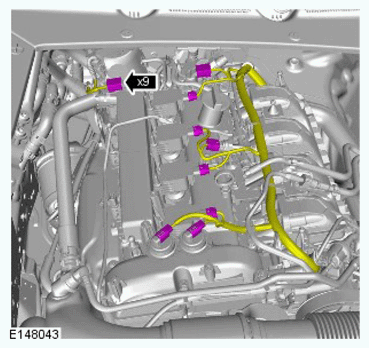

  2. G11418448

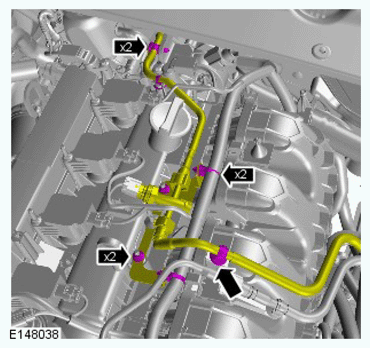

  3. G11418449

    Torque Specification: 8 Nm

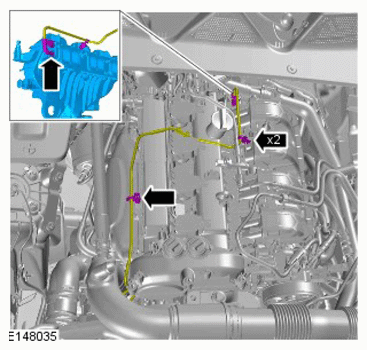

  4. G11418450

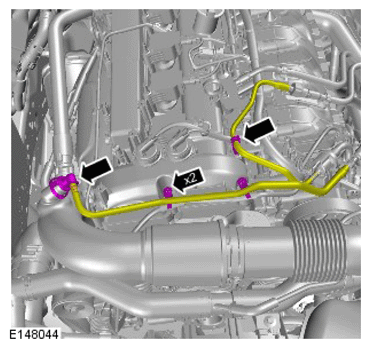

  5. G11418451

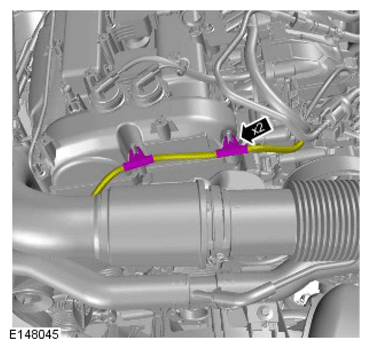

  6. G11418452

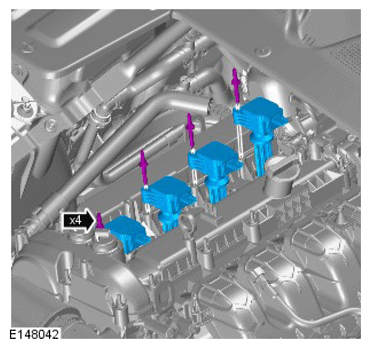

  7. G11418453

    Torque Specification: 8 Nm

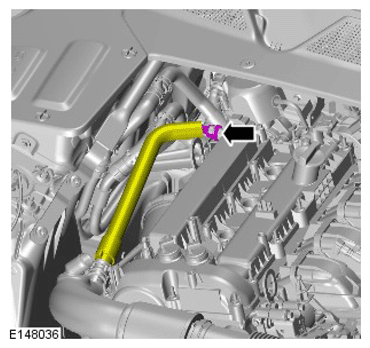

  8. G11418454

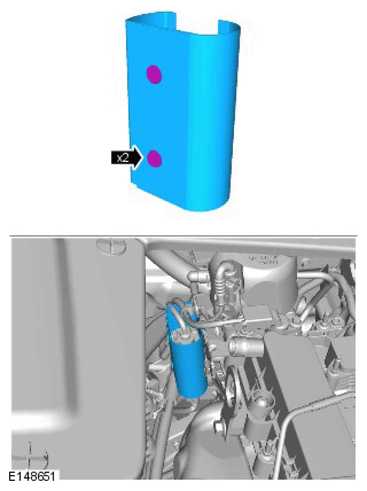

  9. G11418455

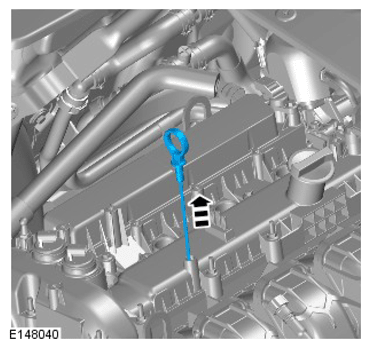

  10. G11418456

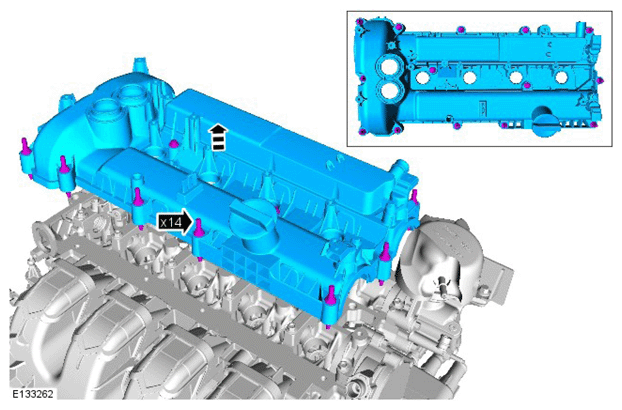

  11. G11418457
  12. NOTE:
    • Do not disassemble further if the component is removed for access only.
    • The gaskets are to be reused unless damaged.

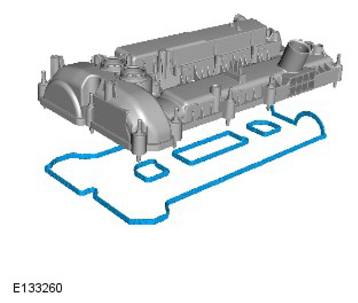

    G11418458

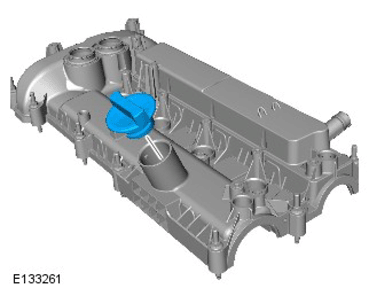

  13. G11418459

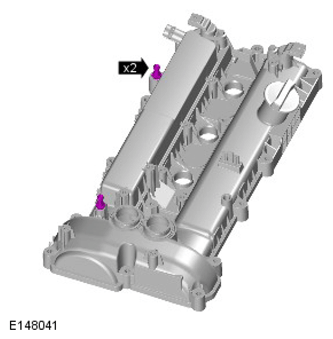

  14. G11418460

    Torque Specification: 8 Nm

  15. CAUTION:
    • Lubricate the O-ring seals.
    • Take care not to damage the O-ring seals during installation.
    NOTE: If the O-ring is damaged, a new sensor must be installed.

    Torque Specification: 6 Nm

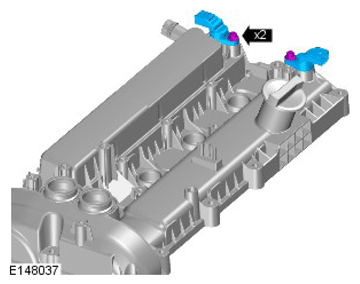

    G11418461
