Valve Cover (G1550169): Installation
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
-
CAUTION:
- Make sure the mating faces are clean, before the sealant is applied.

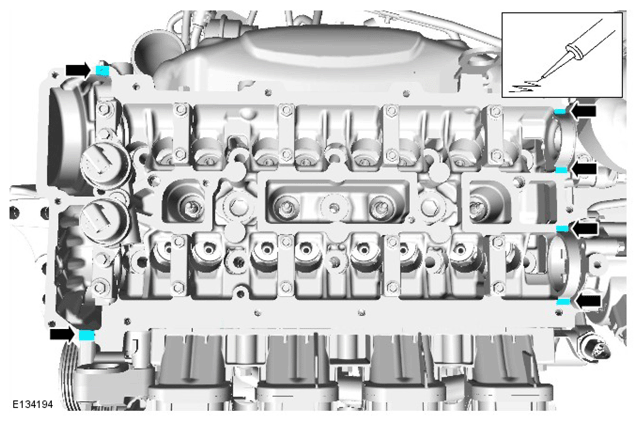

- Apply sealant WSE-M4G323-A6 in a 4-7mm diameter on the cylinder head in the areas illustrated. Install the component immediately after applying the sealant without smearing the sealant.
-

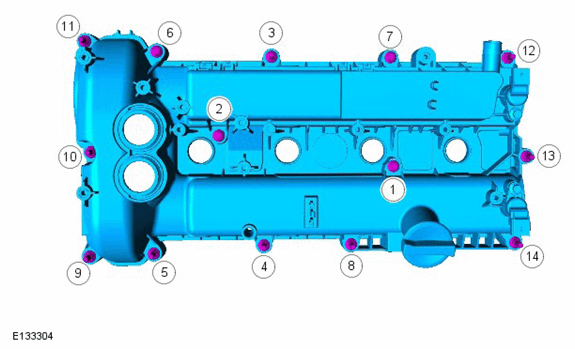

CAUTION: Tighten the bolts in the sequence shown.
Torque Specification: 10 Nm
- To install, reverse the removal procedure.
