Timing Cover (G1550168): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some illustrations may show the engine removed for clarity.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (General Procedures).
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Crankshaft Position (CKP) Sensor (Removal and Installation).
  4. Refer to: Crankshaft Pulley  (Removal and Installation).

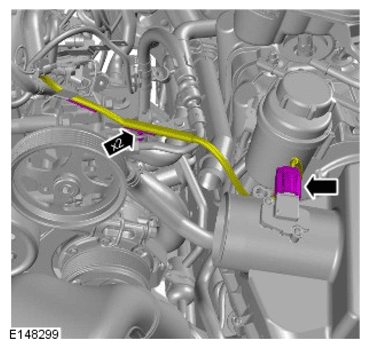

  5. G11418436

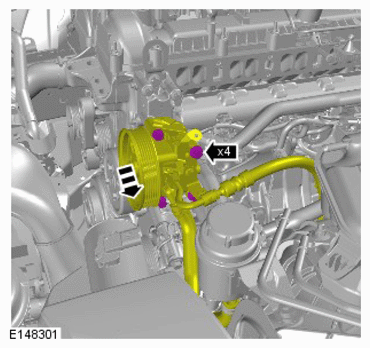

  6. G11418437

    Torque Specification: 24 Nm

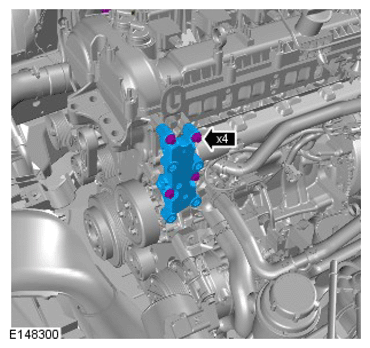

  7. G11418438

    Torque Specification: 25 Nm

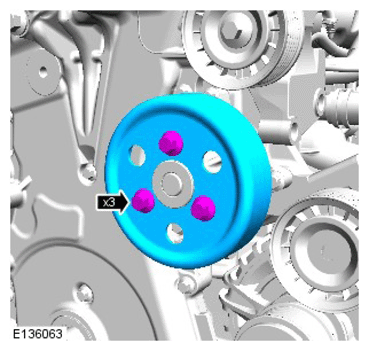

  8. NOTE: Using a suitable bar lock the coolant pump pulley.
    G11418439

    Torque Specification: 20 Nm

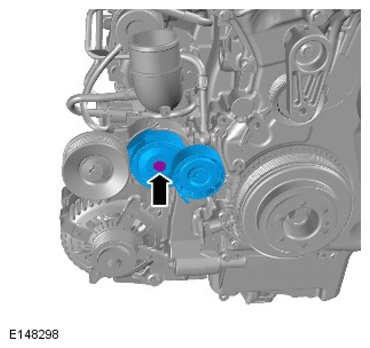

  9. G11418440

    Torque Specification: 48 Nm

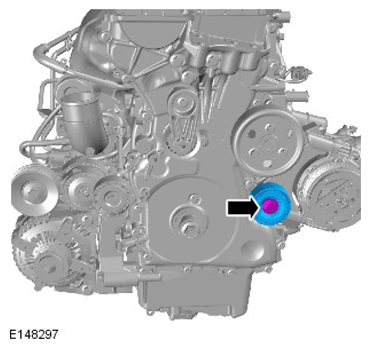

  10. G11418441

    Torque Specification: 48 Nm

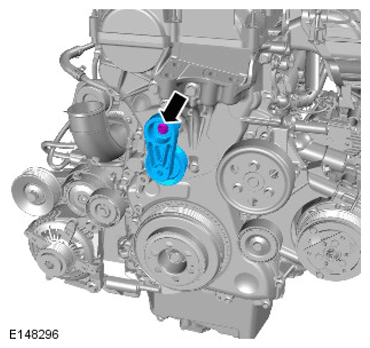

  11. G11418442

    Torque Specification: 25 Nm

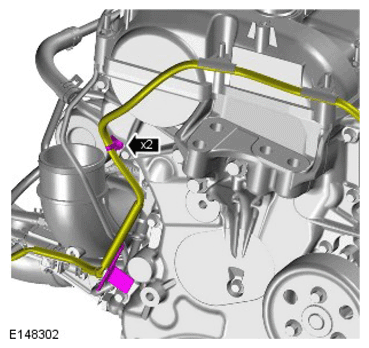

  12. G11418443

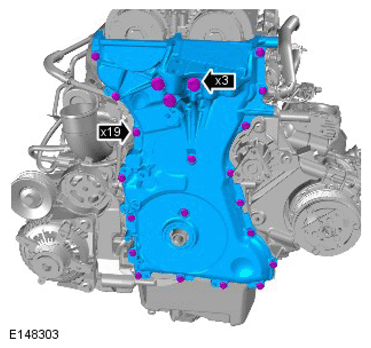

  13. G11418444

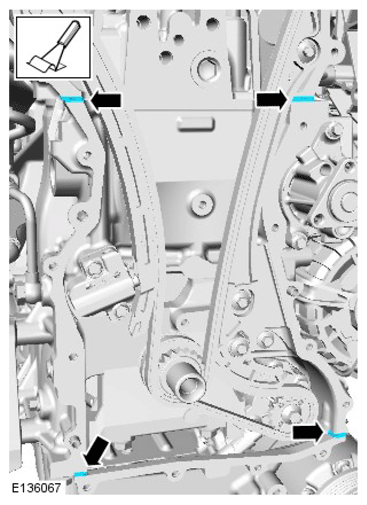

  14. NOTE: Make sure that all traces of the old sealant are removed from the mating faces.
G11418445
