Timing Chain (G1550167): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Prior to installing the timing components, making sure that the crankshaft is at the top dead centre (TDC) cylinder 1.

NOTE:

Some illustrations may show the engine removed for clarity.
Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: Battery Disconnect and Connect (General Procedures).
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: Timing Cover (Removal and Installation).
CAUTION:

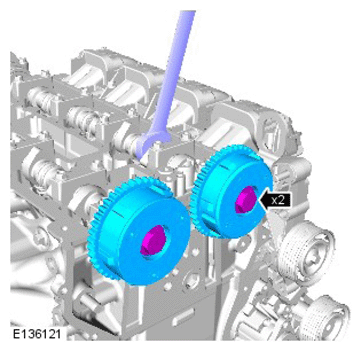

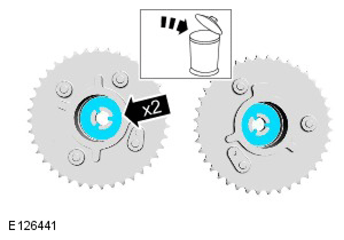

- Use an open-ended wrench to hold the camshafts by the hexagon to prevent the camshafts from turning.

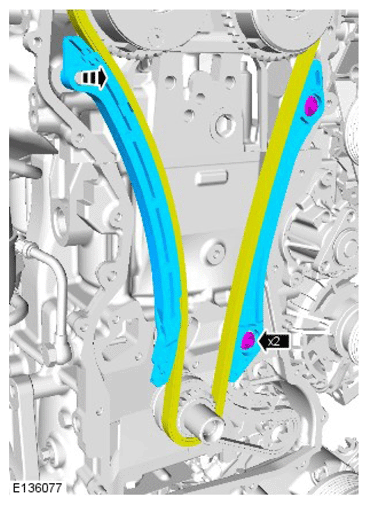

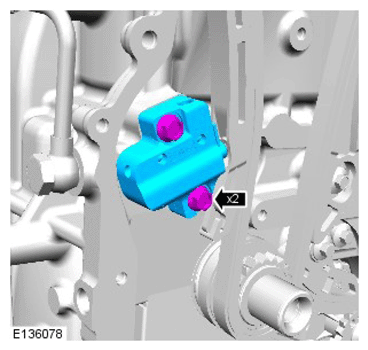

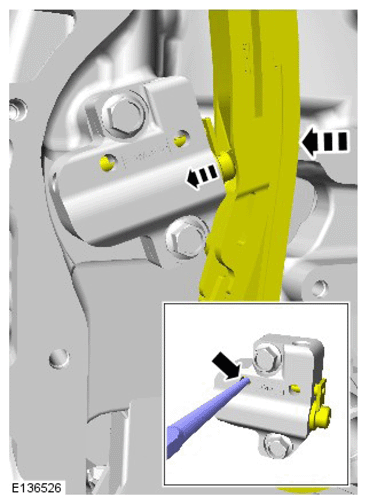

- Note the fitted position of the component prior to removal.

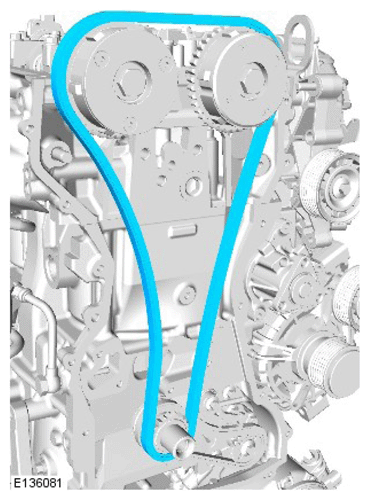

NOTE: Do not disassemble further if the component is removed for access only.
