Oil Pump (G1550166): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Some illustrations may show the engine removed for clarity.

Refer to: Battery Disconnect and Connect (General Procedures).
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: Oil Pan (Removal and Installation).
Refer to: Timing Cover (Removal and Installation).

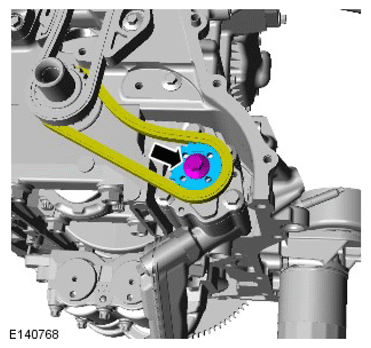

CAUTION: Using a suitable tool, hold the oil pump gear when removing the centre bolt.

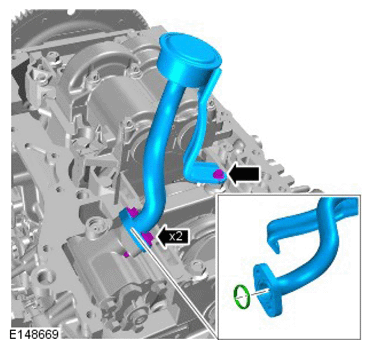

CAUTION: Discard the seal.
