Oil Cooler (G1550162): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Removal steps in this procedure may contain installation details. Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions .
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).

  4. Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (G1816880) (General Procedures).
  5. Refer to: Intake Manifold  (Removal and Installation).

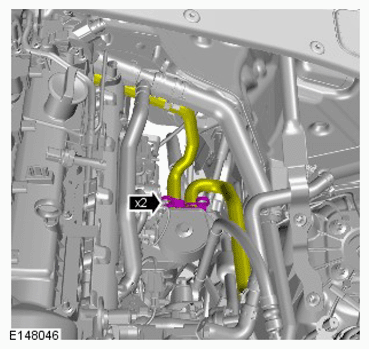

  6. G11418370
  7. CAUTION: Make sure that the area around the component is clean and free of foreign material.

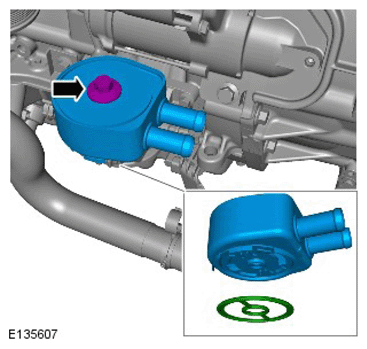

    G11418371

    Torque Specifications:

    Stage 1: 22 Nm

    Stage 2: 75°

    1. Wait for 10 seconds.

      Torque Specification: 15°
