Intake Manifold (G1550161): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions .
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).

  4. Refer to: Engine Cover - GTDi 2.0L Petrol (Removal and Installation).
  5. Refer to: Air Deflector (Removal and Installation).
  6. NOTE: Make sure that all openings are sealed. Use new blanking caps.

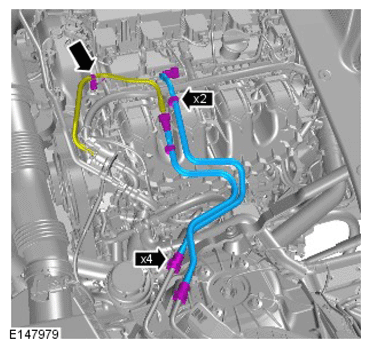

    G11418355

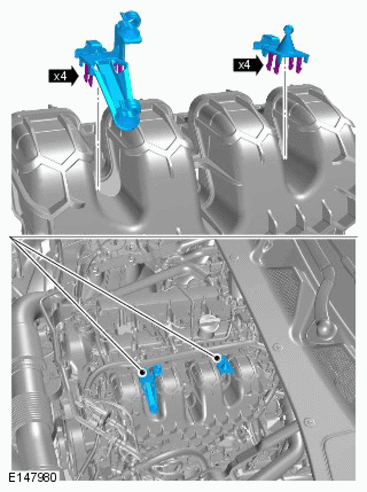

  7. G11418356

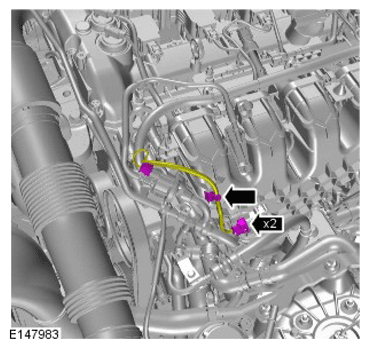

  8. G11418357

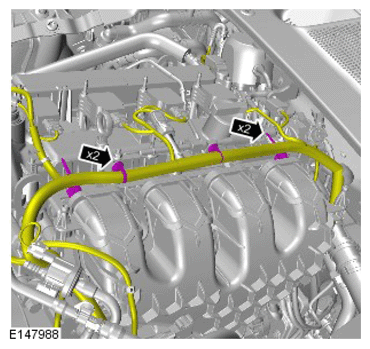

  9. G11418358

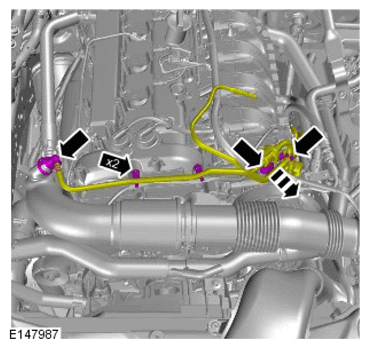

  10. G11418359

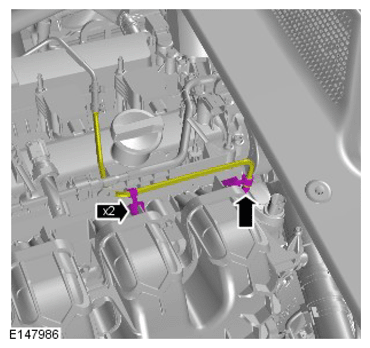

  11. G11418360

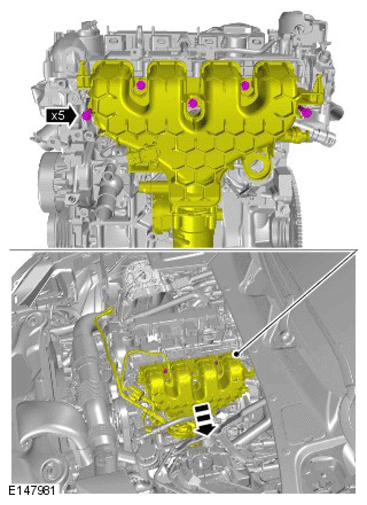

  12. G11418361

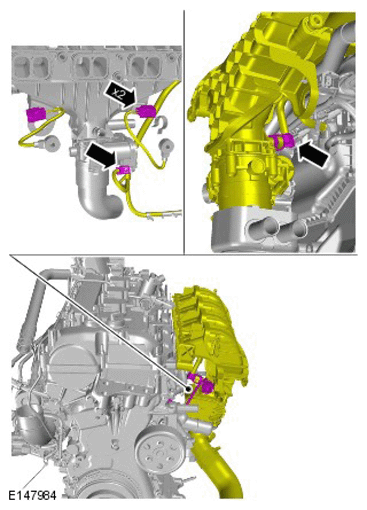

  13. G11418362

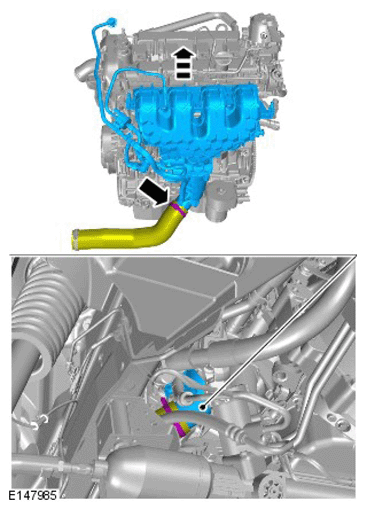

  14. G11418363

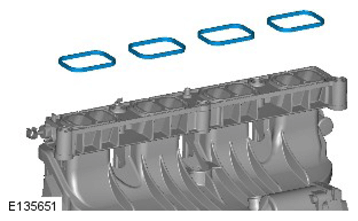

  15. G11418364
  16. NOTE: Do not disassemble further if the component is removed for access only.

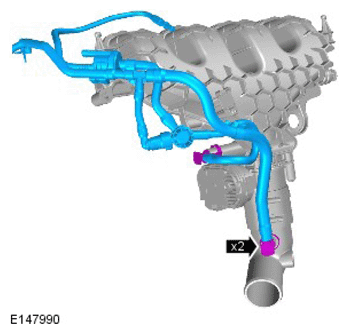

    G11418365

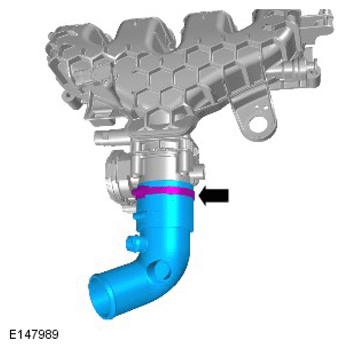

  17. G11418366

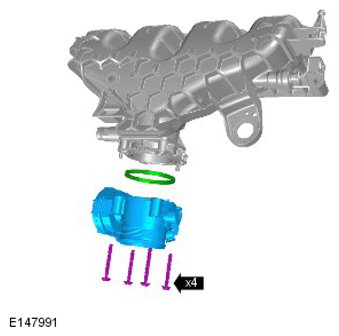

  18. G11418367

    Torque Specification: 8 Nm

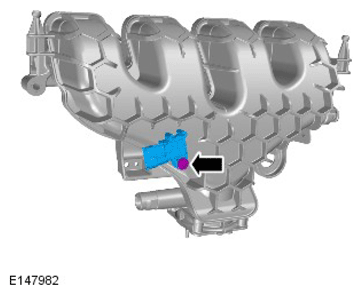

  19. G11418368

Torque Specification: 5 Nm
