FLEXPLATE (G1569052): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some illustrations may show the engine removed for clarity.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Battery Disconnect and Connect (General Procedures).
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Transmission - GTDi 2.0L Petrol (RWD, Removal).

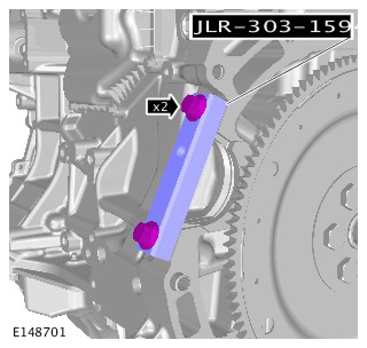

  4. G11418348

    Special Tool(s):  JLR-303-1594

    Torque Specifications:

    M10 40 Nm

    M12 90 Nm

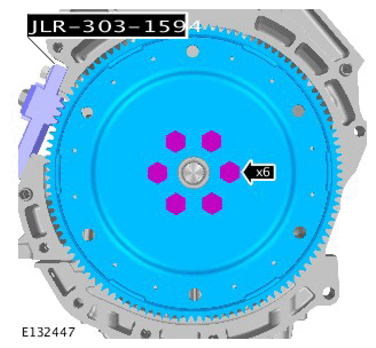

  5. CAUTION: Discard the bolts.
    G11418349

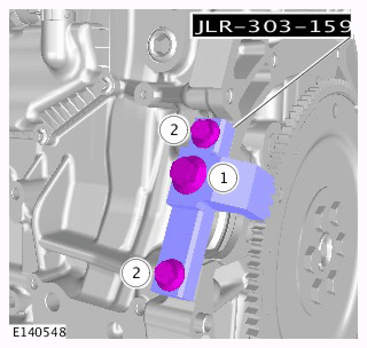

  6. G11418350

    Remove the special tool.
