FLEXPLATE (G1569052): Installation

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

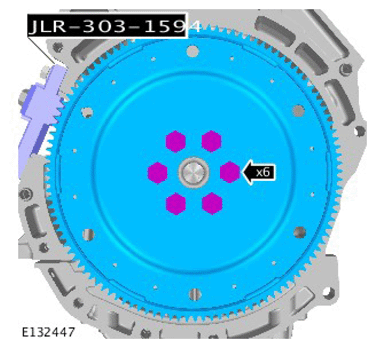

  1. CAUTION:
    • Make sure that new bolts are installed.
    • Only tighten the bolts finger-tight at this stage.
    G11418351
  2. G11418352

    Torque Specifications:

    M10 40 Nm

    M12 90 Nm

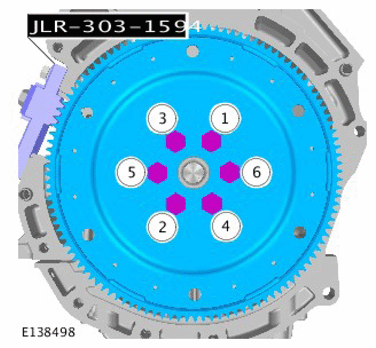

  3. NOTE: Tighten the retaining bolts in the sequence shown.
    G11418353

    Torque Specifications:

    Stage 1: 50 Nm

    Stage 2: 70 Nm

    Stage 3: 112 Nm

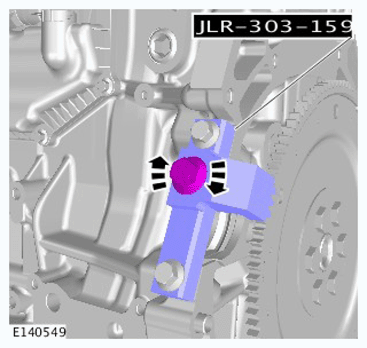

  4. G11418354

    Remove the special tool.

  5. Refer to: Transmission - GTDi 2.0L Petrol (RWD, Installation ).
  6. Refer to: Battery Disconnect and Connect (General Procedures).
