Engine Mount RH (G1550158): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe due care when working near a hot exhaust system.

NOTE:

Some illustrations may show the engine removed for clarity.
Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: Engine Cover - GTDi 2.0L Petrol (Removal and Installation).
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (G1816880) (General Procedures).
Refer to: Air Deflector (Front End Body Panels, Removal and Installation).

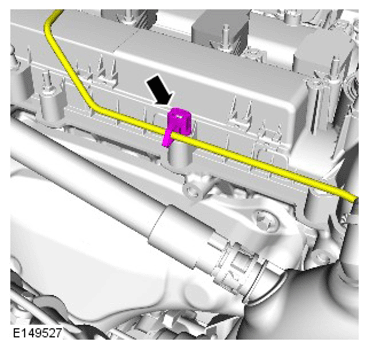

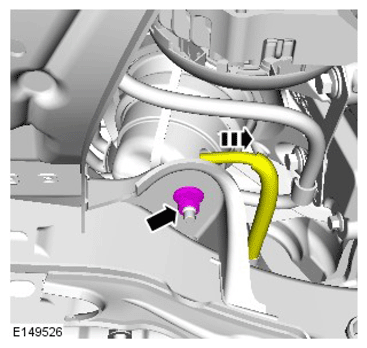

NOTE: Remove and discard the nut.
Lower the vehicle.

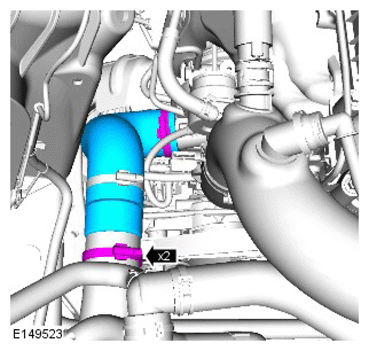

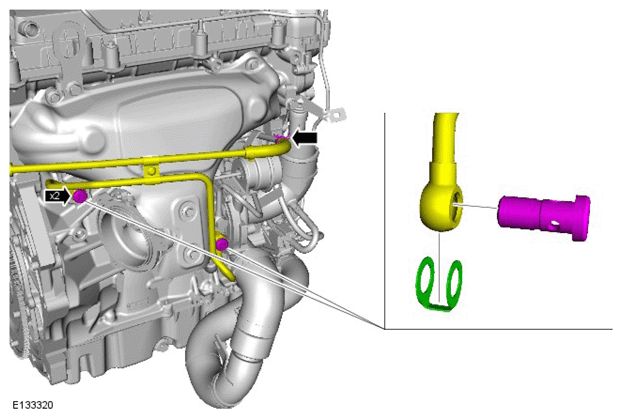

CAUTION:
- Be prepared to collect escaping coolant.
- Make sure that new sealing washers are installed.

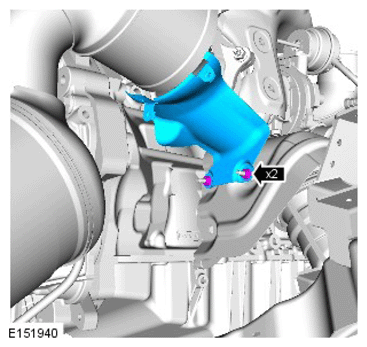

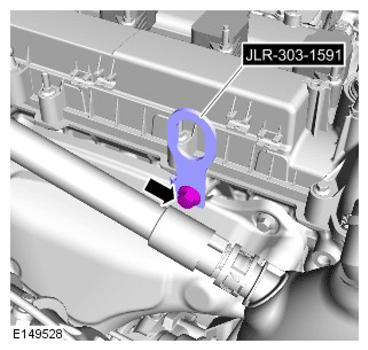

- Special Tool(s): JLR-303-1591
- Torque Specification: 48 Nm

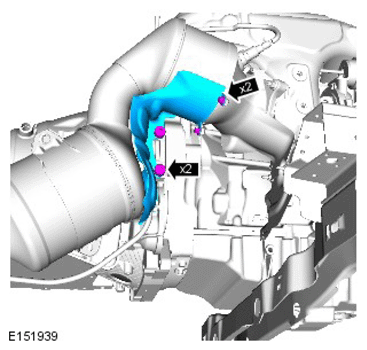

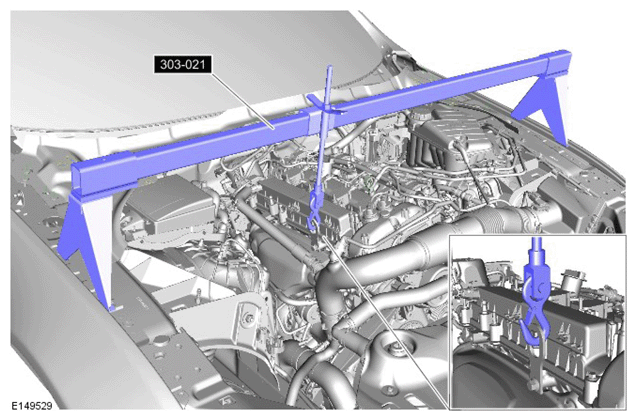

Install the engine support.

Special Tool(s): 303-021

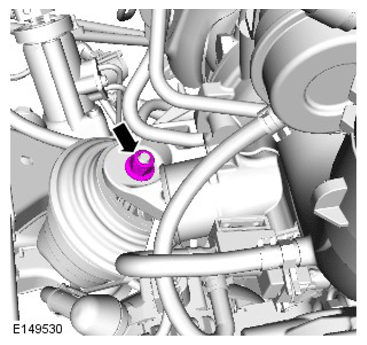

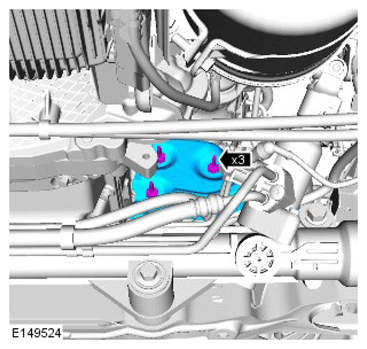

NOTE: Remove and discard the nut.
Raise the right side of the engine by approximately 40 mm.

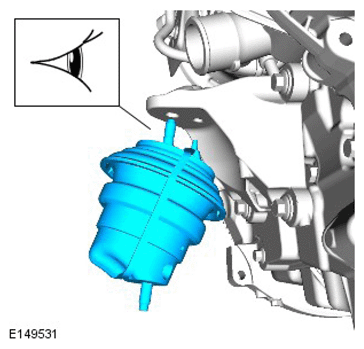

NOTE:
- Note the position of the components prior to removal.
- Do not disassemble further if the component is removed for access only.
