Engine Mount RH (G1550158): Installation

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Install a new locknut.

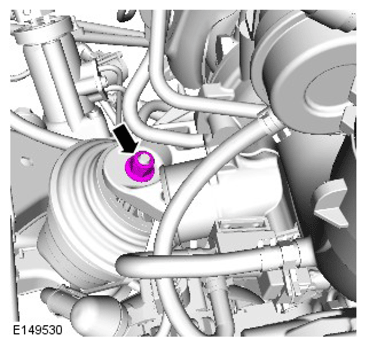

    G11418337

    Torque Specification: 48 Nm

  2. CAUTION: Make sure the engine mounts locate into the correct position when the engine is repositioned.

    Lower the engine.

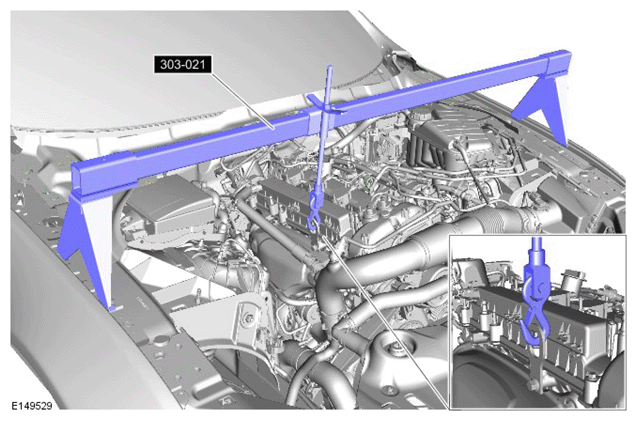

  3. G11418338

    Remove the special tool supporting the engine.

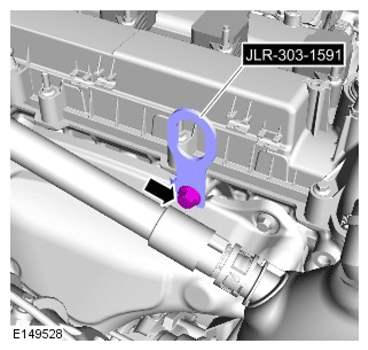

  4. G11418339

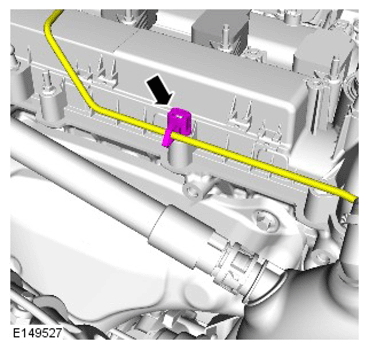

  5. G11418340
  6. CAUTION:
    • Be prepared to collect escaping coolant.
    • Make sure that new sealing washers are installed. 6.

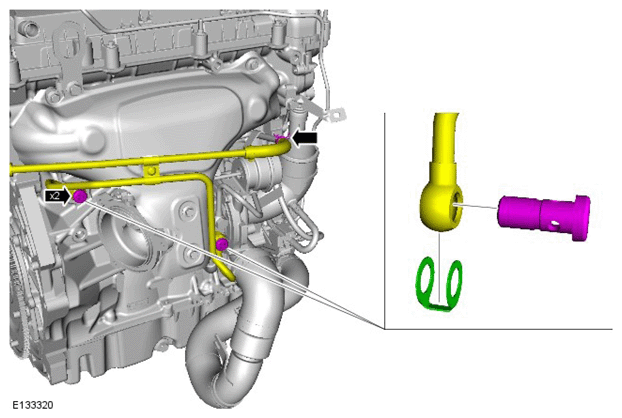

    G11418341

    Torque Specification: 28 Nm

  7. Raise the vehicle.
  8. CAUTION: Install a new locknut.

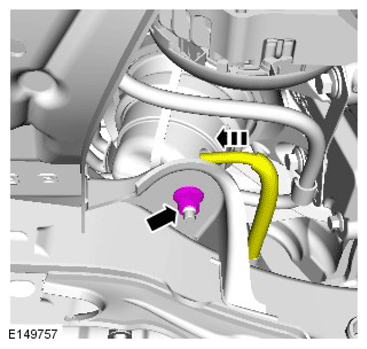

    G11418342

    Torque Specification: 48 Nm

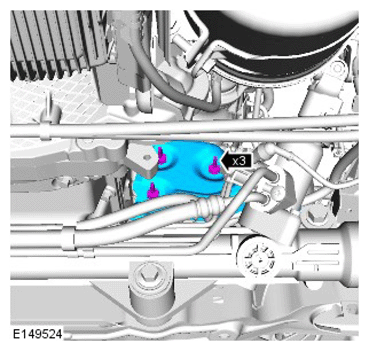

  10. G11418343

    Torque Specification: 11 Nm

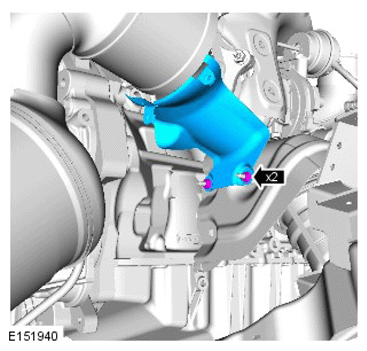

  11. G11418344

    Torque Specification: 11 Nm

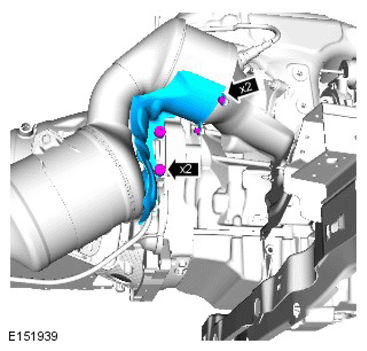

  12. G11418345

    Torque Specification: 11 Nm

  13. Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (G1816880) (General Procedures).
  14. Refer to: Air Deflector (INSTALLATION ).

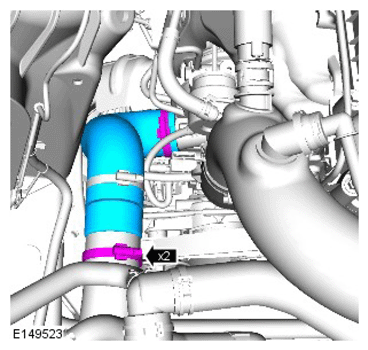

  15. G11418346
  16. Refer to: Engine Cover - GTDi 2.0L Petrol (INSTALLATION ).
