Engine Mount LH (G1550157): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some illustrations may show the engine removed for clarity.
Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

All vehicles

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: Air Deflector (Front End Body Panels, Removal and Installation).

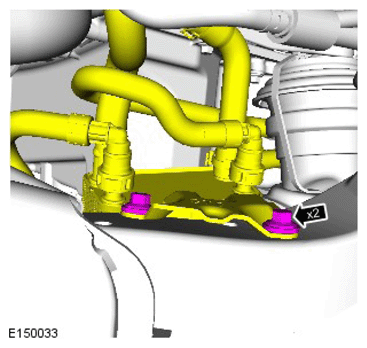

NOTE: Loosen but do not fully remove.

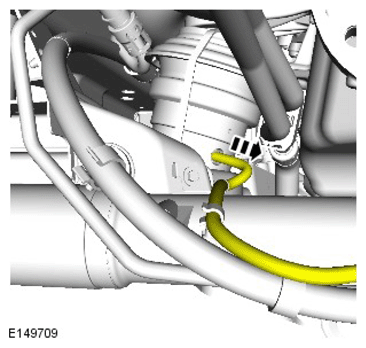

Lower vehicle to a convenient height.

Left-hand drive vehicles

Lower the vehicle.
Refer to: Engine Cover - GTDi 2.0L Petrol (Removal and Installation).
Refer to: Air Cleaner (Removal and Installation).

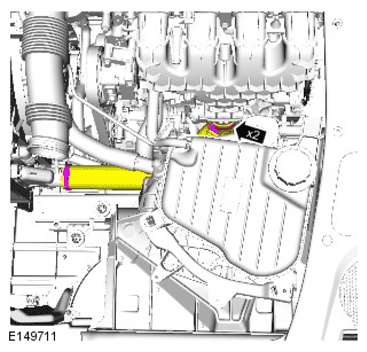

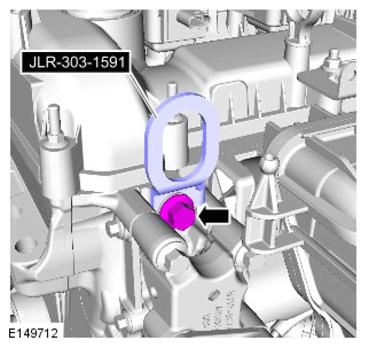

- Special Tool(s): JLR-303-1591
- Torque Specification: 48 Nm

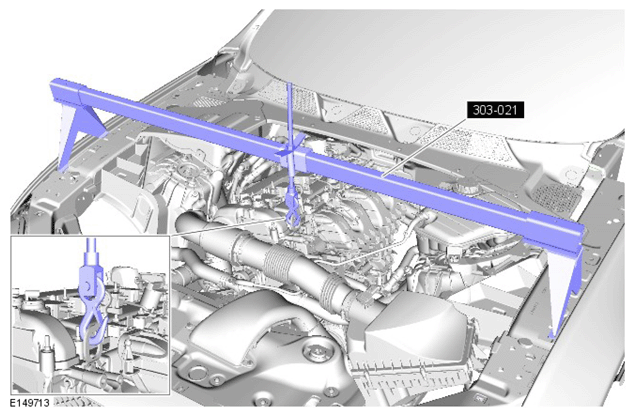

Install the engine support.

Special Tool(s): 303-021

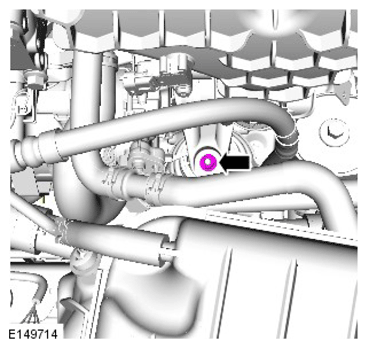

NOTE: Remove and discard the nut.
Raise the left side of the engine by approximately 40 mm.
Raise the vehicle.

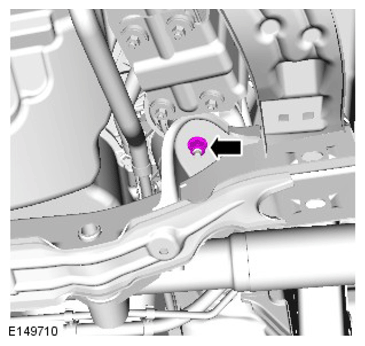

NOTE: Remove and discard the nut.

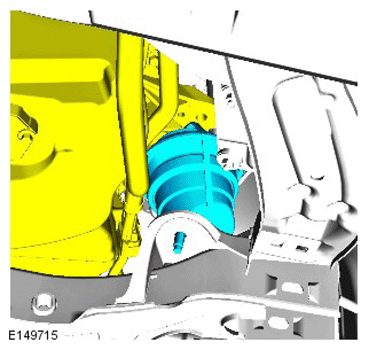

Left-hand drive vehicles

NOTE:
- Note the position of the components prior to removal.
- Do not disassemble further if the component is removed for access only.

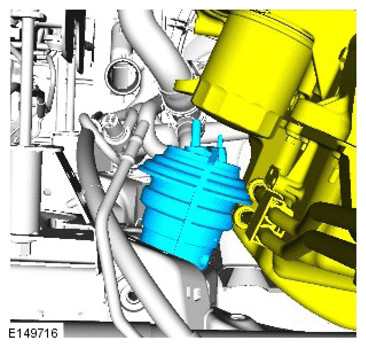

Right-hand drive vehicles

NOTE:
- Note the position of the components prior to removal.
- Do not disassemble further if the component is removed for access only.
