Engine Mount LH (G1550157): Installation

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

Right-hand drive vehicles

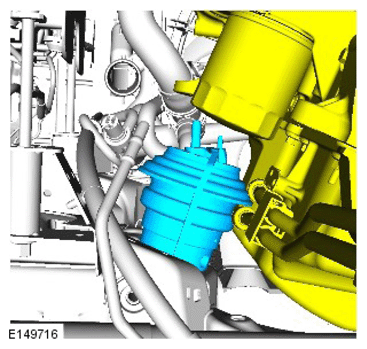

  1. G11418315

Left-hand drive vehicles

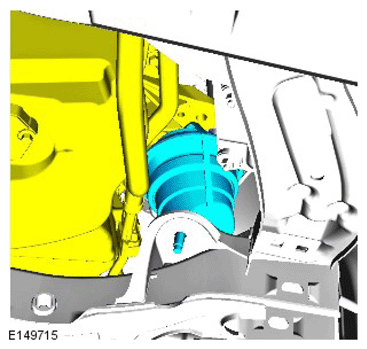

  1. G11418316
  2. CAUTION: Install a new locknut.
    NOTE: Do not fully tighten the locking nut at this stage.
    G11418317
  3. CAUTION: Make sure the engine mounts locate into the correct position when the engine is repositioned.

    Lower the engine.

  4. CAUTION: Install a new locknut.

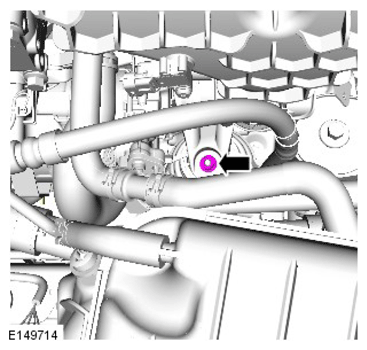

    G11418318

    Torque Specification: 48 Nm

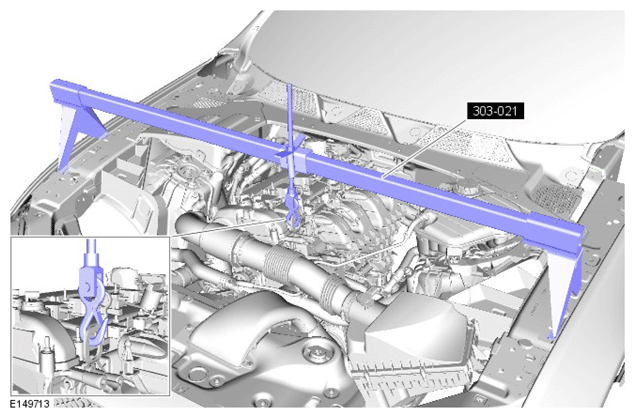

  5. G11418319

    Remove the special tool supporting the engine.

  6. G11418320

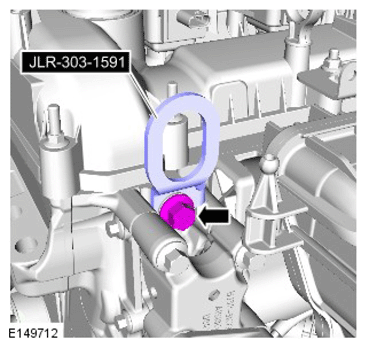

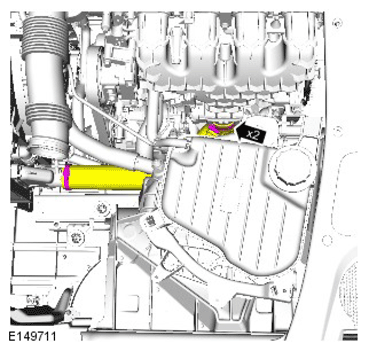

  7. G11418321
  8. Refer to: Air Cleaner (Installation ).
  9. Refer to: Engine Cover - GTDi 2.0L Petrol (Installation ).
  10. Raise vehicle to a convenient height.

Left-hand drive vehicles

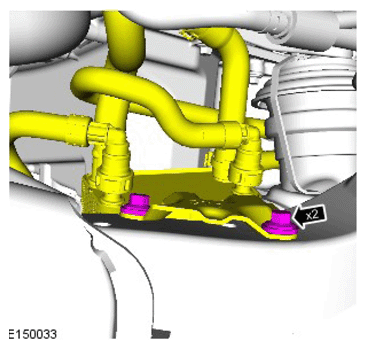

  1. G11418322

    Torque Specification: 45 Nm

  2. Raise the vehicle.

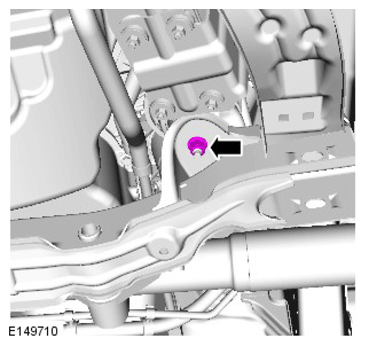

  3. G11418323

    Torque Specification: 48 Nm

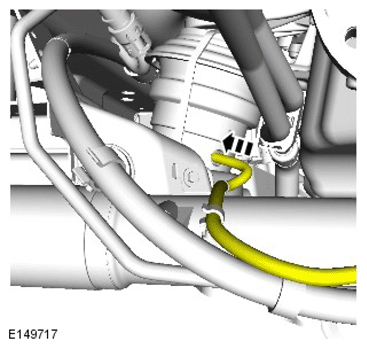

  4. G11418324
  5. Refer to: Air Deflector (INSTALLATION ).
