Engine (G1550170 / G1550173): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

PART(S)

STEP REPLACE PART/RENEW PART PART NAME
Step  24 Renew Part Air conditioning pipe to compressor O-ring seals
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).

  2. Refer to: Hood (Front End Body Panels, Removal and Installation).
  3. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  4. Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (G1816880) (General Procedures).
  5. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (General Procedures).
  6. Refer to: Cooling Fan Motor and Shroud (Removal and Installation).
  7. Refer to: Secondary Bulkhead Panel RH - GTDi 2.0L Petrol (Front End Body Panels, Removal and Installation).
  8. Refer to: Transmission - GTDi 2.0L Petrol (RWD, Removal).
  9. Refer to: Standard Workshop Practices (General Information, Description and Operation).

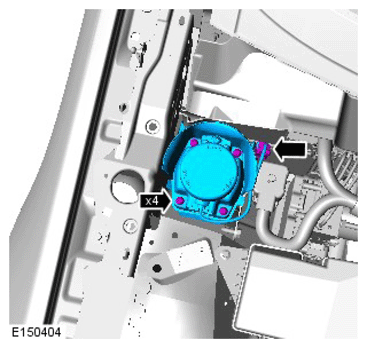

  10. NOTE: LHD illustration shown, RHD is similar.
    G11418464
  11. NOTE: LHD illustration shown, RHD is similar.

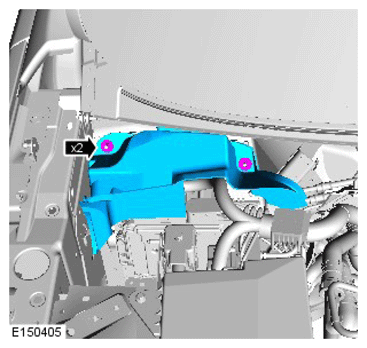

    G11418465

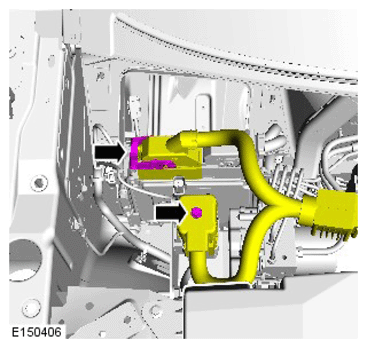

  12. NOTE: LHD illustration shown, RHD is similar.
    G11418466
  13. CAUTION: Be prepared to collect escaping coolant.

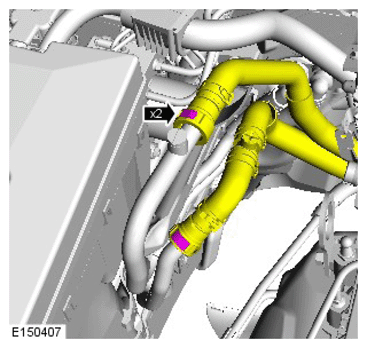

    G11418467
  14. CAUTION: Be prepared to collect escaping coolant.

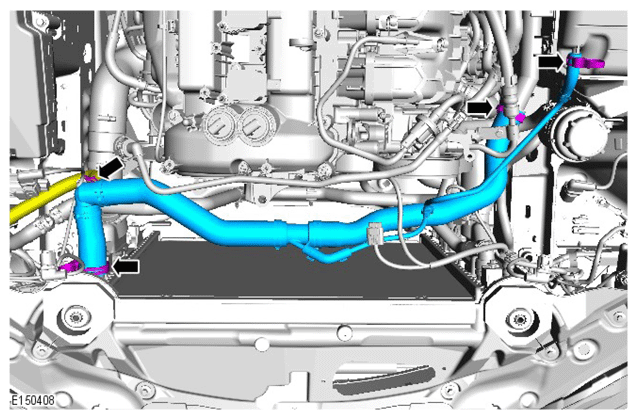

    G11418468

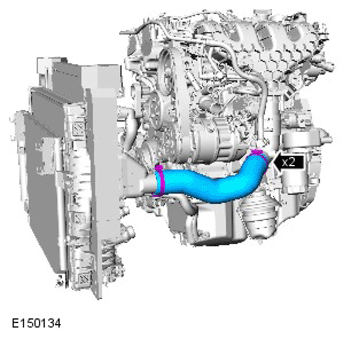

  15. G11418469

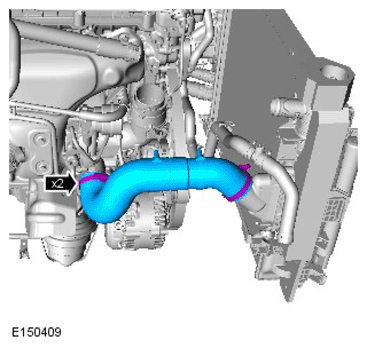

  16. G11418470

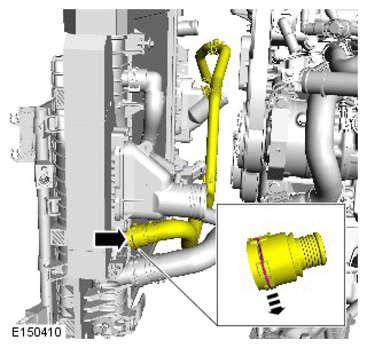

  17. CAUTION: Be prepared to collect escaping coolant.
    G11418471

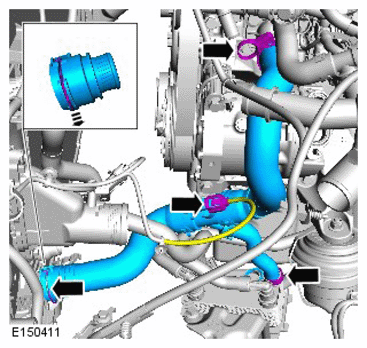

  18. CAUTION: Be prepared to collect escaping coolant.
    G11418472

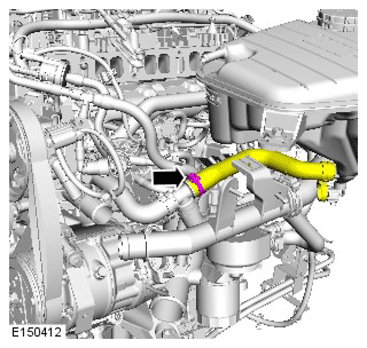

  19. CAUTION: Be prepared to collect escaping coolant.
    G11418473
  20. CAUTION: Be prepared to collect escaping coolant.

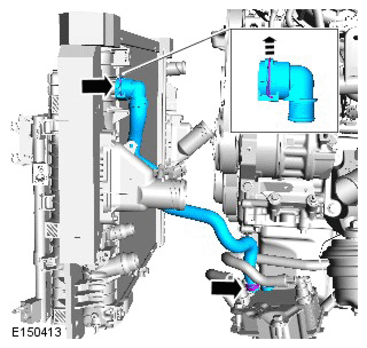

    G11418474

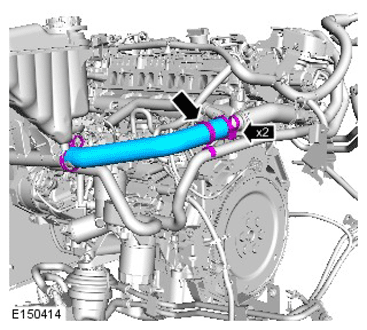

  21. G11418475

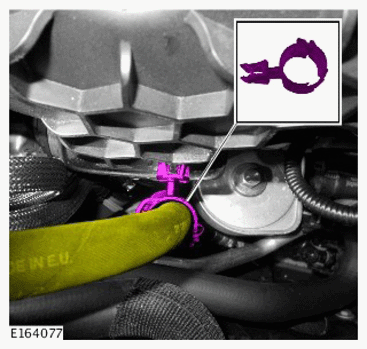

  22. CAUTION: Note the installed position of the component(s) prior to removal.
    G11418476

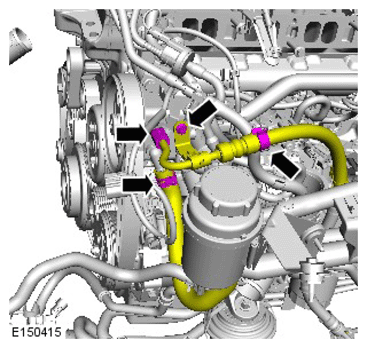

  23. CAUTION: Be prepared to collect escaping fluids.
    G11418477

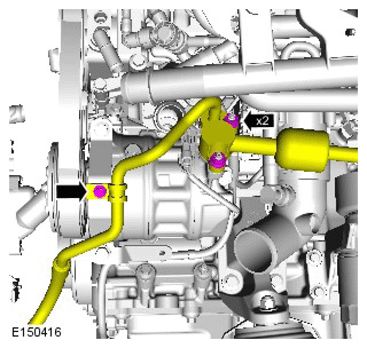

  24. NOTE: Remove and discard the O-ring seal.
    G11418478

    Remove and discard the Air Conditioning (A/C) compressor O-ring seals.

    Renew Part: Air conditioning pipe to compressor O-ring seals.

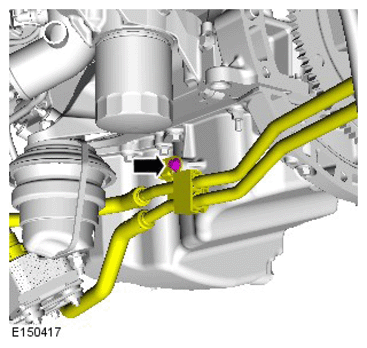

  25. G11418479

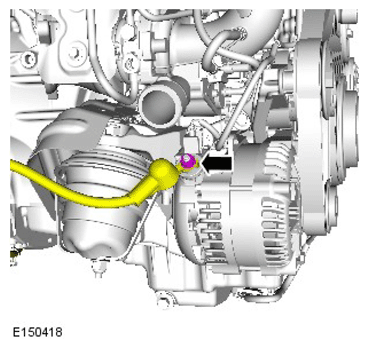

  26. G11418480

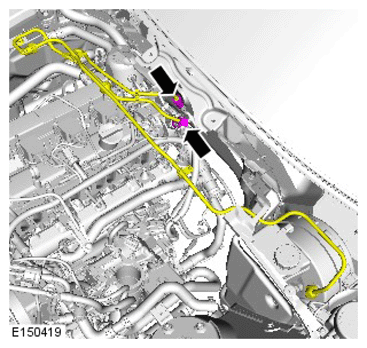

  27. NOTE: LHD illustration shown, RHD is similar.
    G11418481

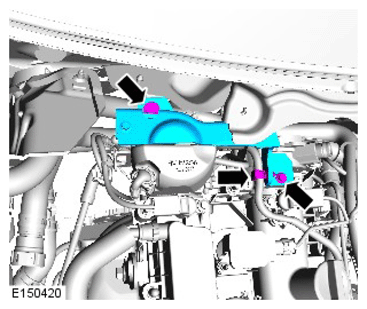

  28. G11418482

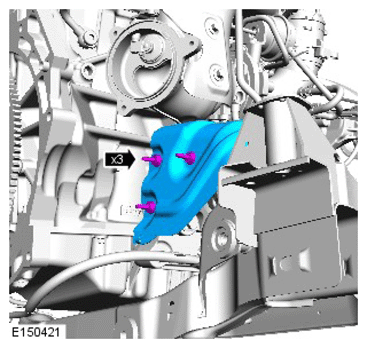

  29. G11418483

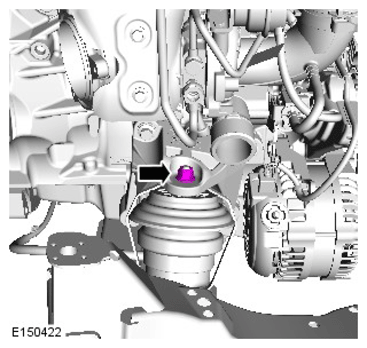

  30. G11418484
    CAUTION: Install a new locknut.

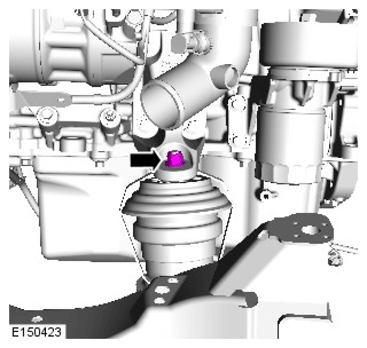

  31. G11418485
    CAUTION: Install a new locknut.

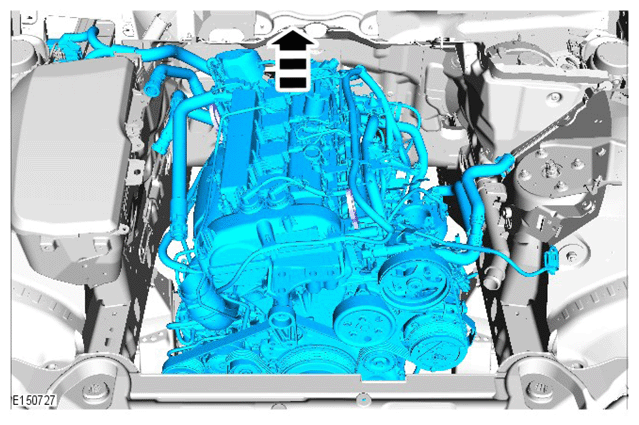

  32. NOTE: This step requires the aid of another technician.
G11418486
CAUTION: Install a new locknut.
CAUTION: Install a new locknut.
