Engine (G1550170 / G1550173): Installation

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.

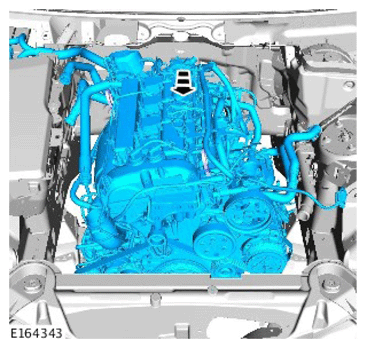

  1. NOTE: This step requires the aid of another technician.
    G11418487

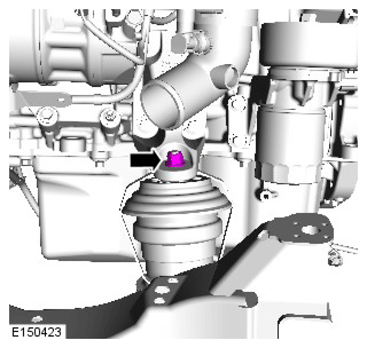

  2. G11418488

    Torque Specification: 48 Nm

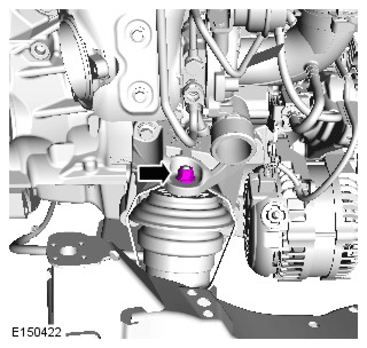

  3. G11418489

    Torque Specification: 48 Nm

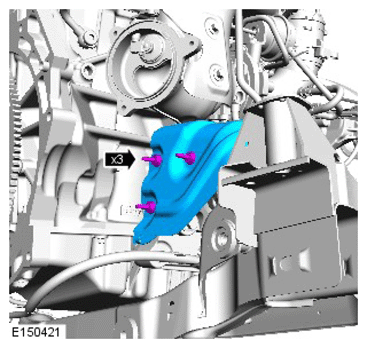

  4. G11418490

    Torque Specification: 10 Nm

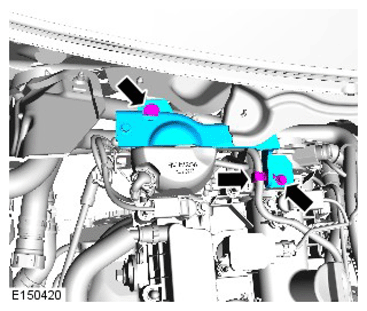

  5. G11418491

    Torque Specifications:

    M8 25 Nm

    M6 10 Nm

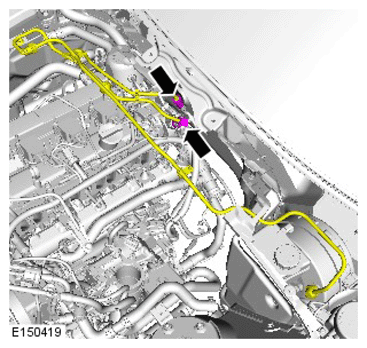

  6. NOTE: LHD illustration shown, RHD is similar.
    G11418492

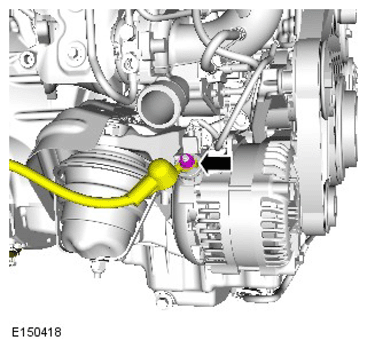

  7. G11418493

    Torque Specification: 12 Nm

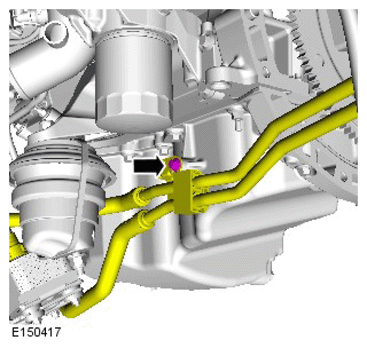

  8. G11418494

    Torque Specification: 10 Nm

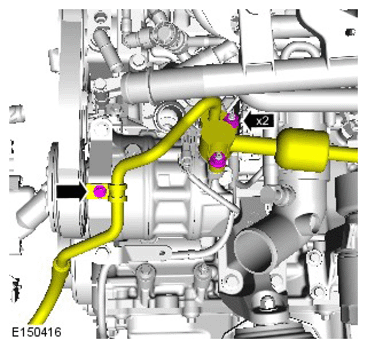

  9. CAUTION: Inspect the O-rings, replace if damaged.
    G11418495

    Torque Specifications:

    M8 25 Nm

    M6 10 Nm

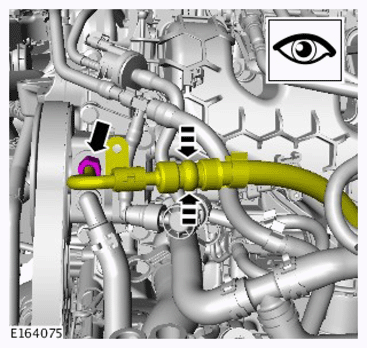

  10. CAUTION: Make sure that the component is aligned as shown.
    NOTE: Remove and discard the blanking cap.
    G11418496

    Torque Specification: 25 Nm

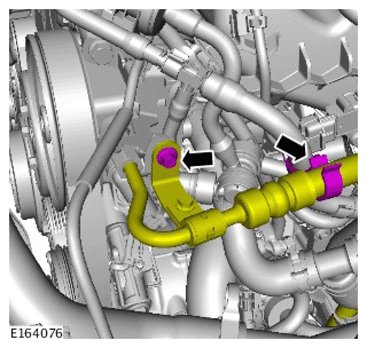

  11. CAUTION: Make sure that the power steering pipe does not move when tightening the bolt.
    G11418497

    Torque Specification: 8 Nm

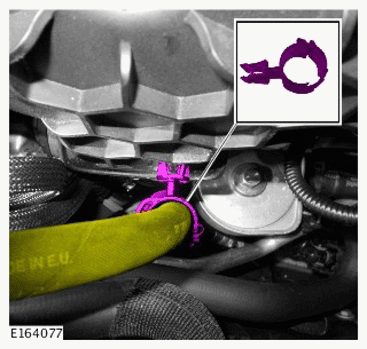

  12. CAUTION:
    • Make sure that there is sufficient clearance between the power steering pipe and the oil cooler housing.
    • Make sure that this component is installed to the noted removal position
    NOTE: Install a new retaining clip.
    G11418498

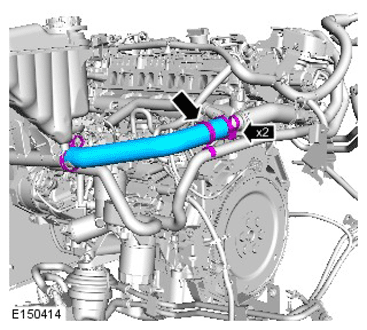

  13. G11418499

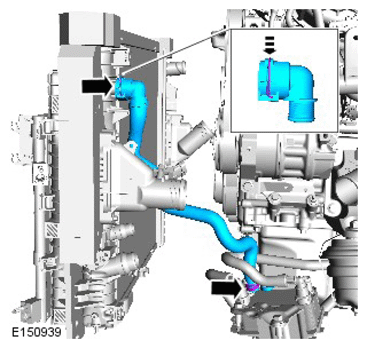

  14. G11418500

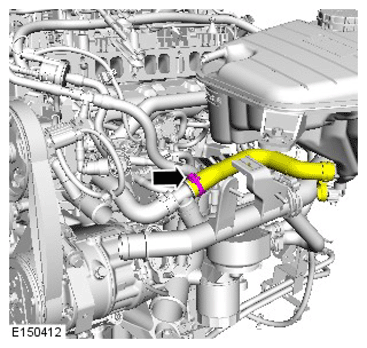

  15. G11418501

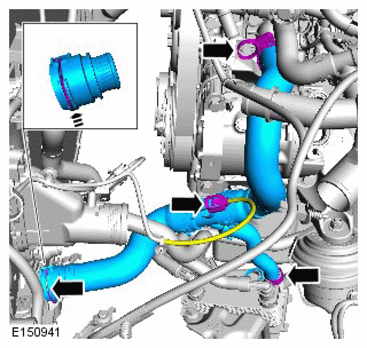

  16. G11418502

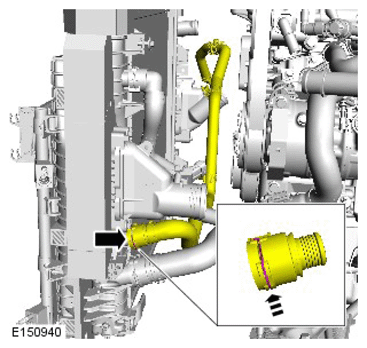

  17. G11418503

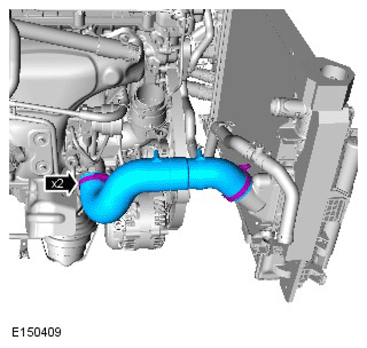

  18. G11418504

    Torque Specification: 4.5 Nm

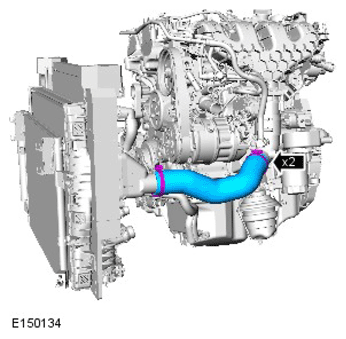

  19. G11418505

    Torque Specification: 4.5 Nm

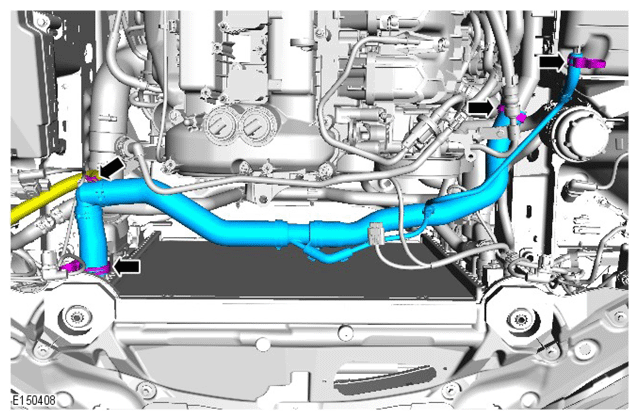

  20. CAUTION: Be prepared to collect escaping coolant.
    G11418506

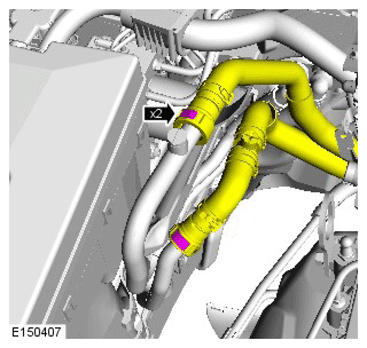

  21. G11418507

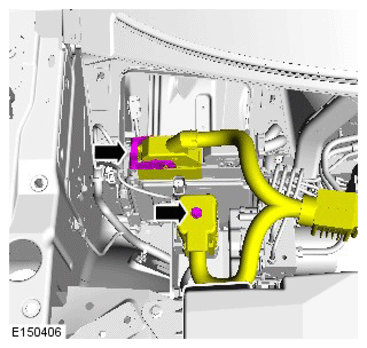

  22. NOTE: LHD illustration shown, RHD is similar.
    G11418508

    Torque Specification: 8 Nm

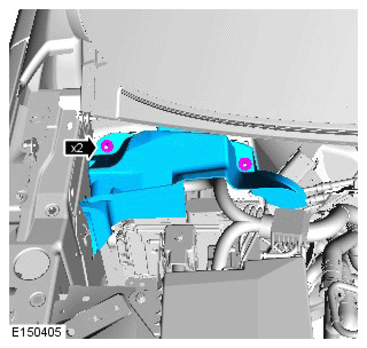

  23. NOTE: LHD illustration shown, RHD is similar.
    G11418509

    Torque Specification: 10 Nm

  24. Refer to: Standard Workshop Practices (General Information, Description and Operation).

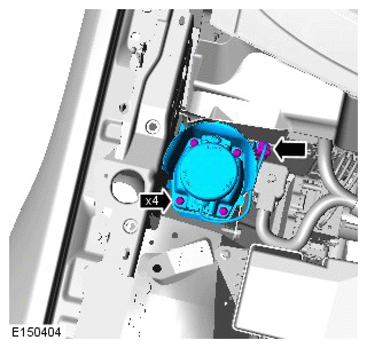

  25. NOTE: LHD illustration shown, RHD is similar.
    G11418510

    Torque Specification: 8 Nm

  26. Refer to: Transmission - GTDi 2.0L Petrol (RWD, Installation ).
  27. Refer to: Secondary Bulkhead Panel RH - GTDi 2.0L Petrol (Front End Body Panels, Installation ).
  28. Refer to: Cooling Fan Motor and Shroud (Installation ).

  29. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (General Procedures).

  30. Refer to: Power Steering System Filling - GTDi 2.0L Petrol/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (General Procedures).
  31. Refer to: Cooling System Partial Draining, Filling and Bleeding (General Procedures).
  32. Refer to: Hood (Front End Body Panels, Installation ).
  33. Connect the battery ground cable.

Refer to: Battery Disconnect and Connect (General Procedures).
