Cylinder Head (G1550156): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some illustrations may show the engine removed for clarity.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Battery Disconnect and Connect (General Procedures).
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (G1816880) (General Procedures).
  4. Refer to: Camshafts  (Removal and Installation).

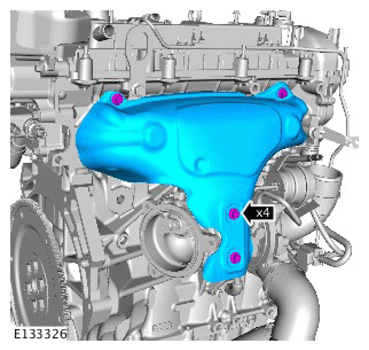

  5. G11418275

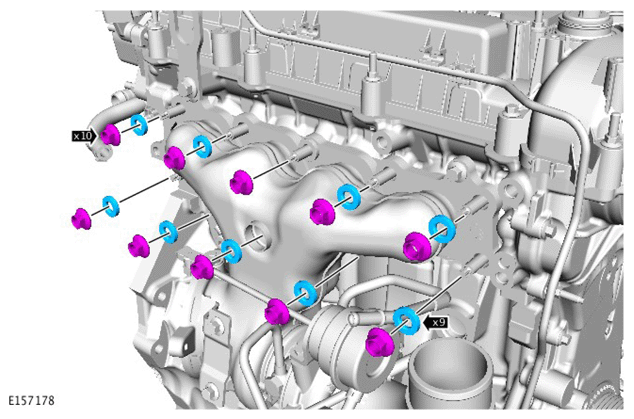

  6. G11418276

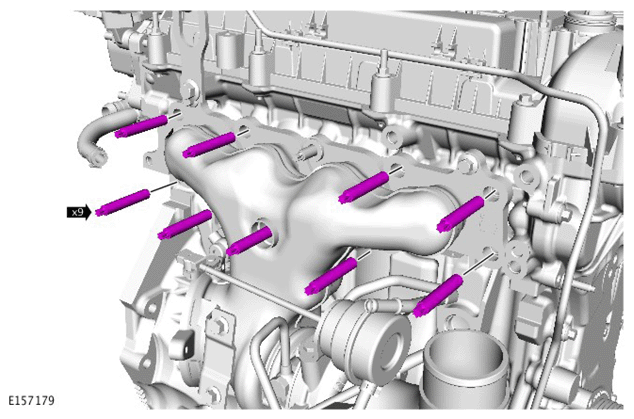

  7. G11418277

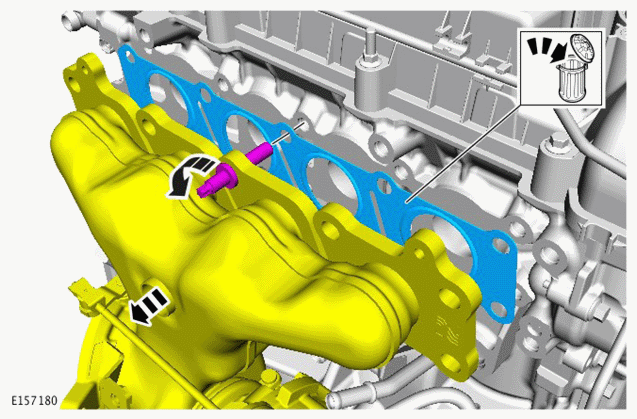

  8. G11418278
  9. CAUTION:
    • Make sure that all openings are sealed. Use new blanking caps.
    • Be prepared to collect escaping coolant.

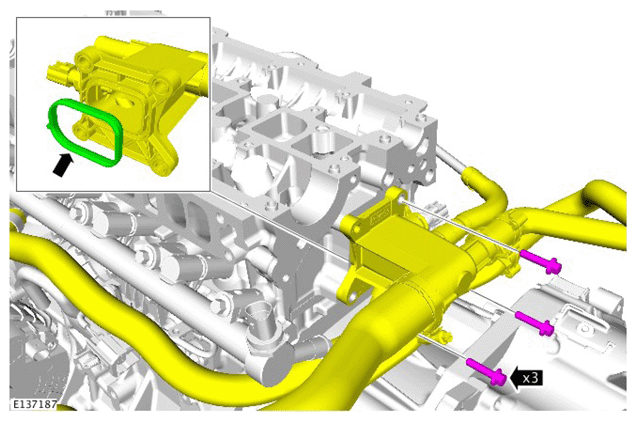

    G11418279
    • Carefully remove and discard the oil seal.

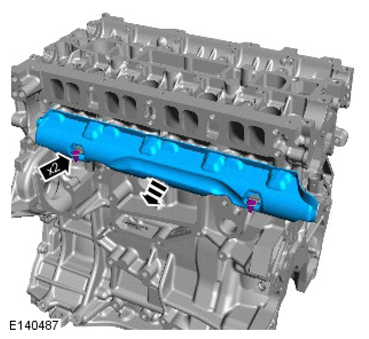

  10. G11418280

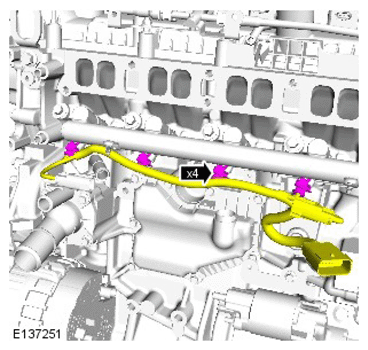

  11. G11418281

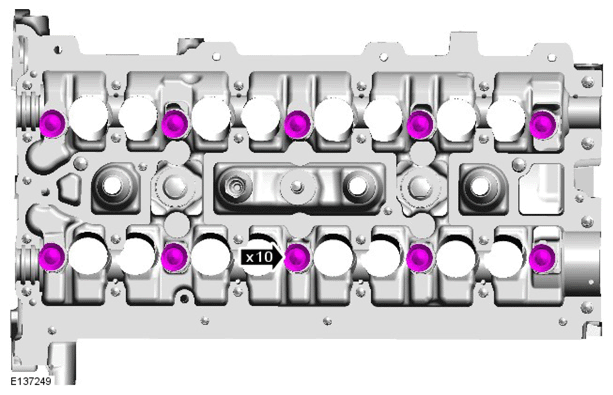

  12. G11418282

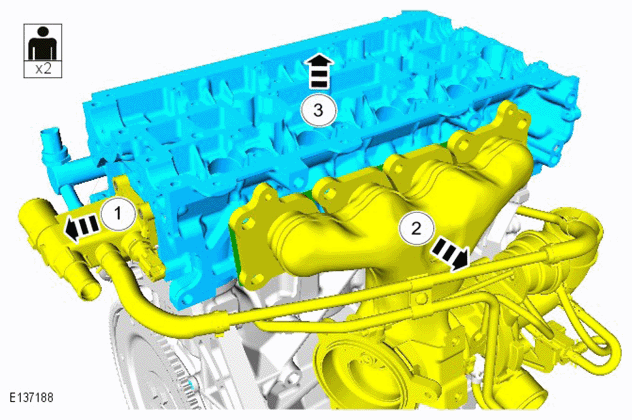

  13. G11418283
    • With assistance remove the cylinder head.

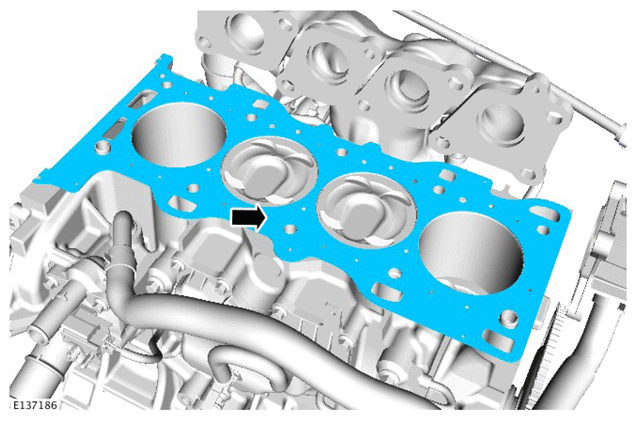

  14. G11418284
    • Remove and discard the cylinder head gasket.
