Camshafts (G1550152): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Tool JLR-303-1565 has been superseded by JLR-303-1600, but can still be used to carry out the procedure detailed below.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the engine removed for clarity.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Timing Chain  (Removal and Installation).

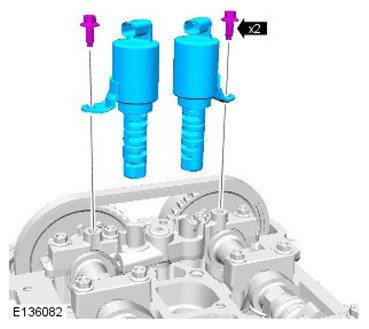

  4. NOTE: Note the orientation of the component prior to removal.
    G11418229

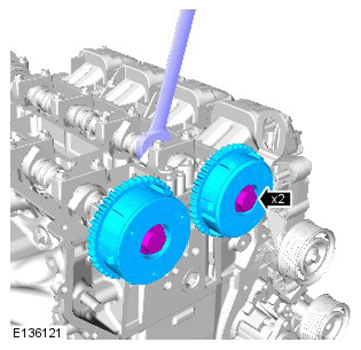

  5. CAUTION:
    • Use an open-ended wrench to hold the camshafts by the hexagon to prevent the camshafts from turning.
    • Note the fitted position of the component prior to removal.
    G11418230

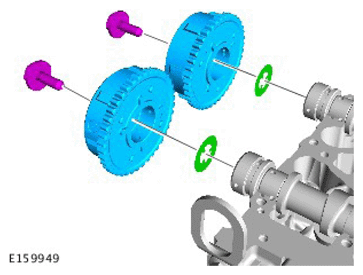

  6. NOTE: Discard the washers.
    G11418231

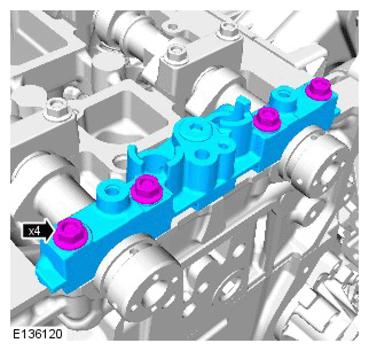

  7. CAUTION: Loosen each bolt 2 turns at a time until all bolts are removed.
    G11418232

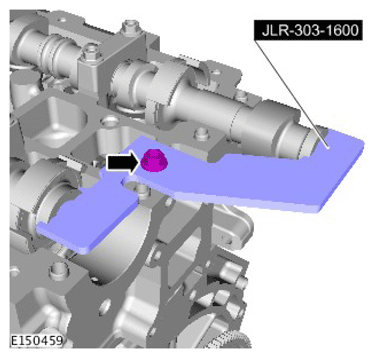

  8. G11418233

    Remove the special tool.

    Special Tool(s):  JLR-303-1600

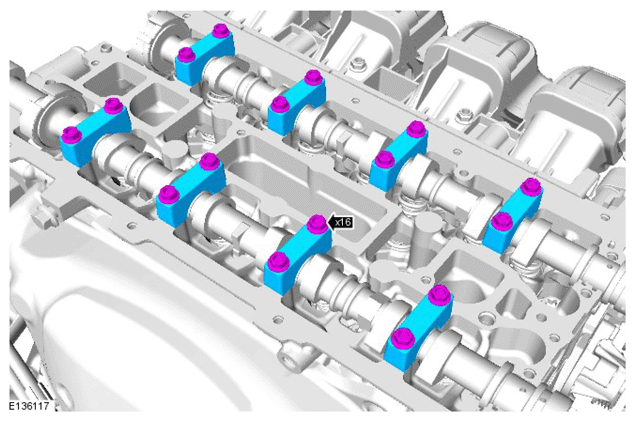

  9. NOTE: Note the orientation of the component prior to removal.
    G11418234

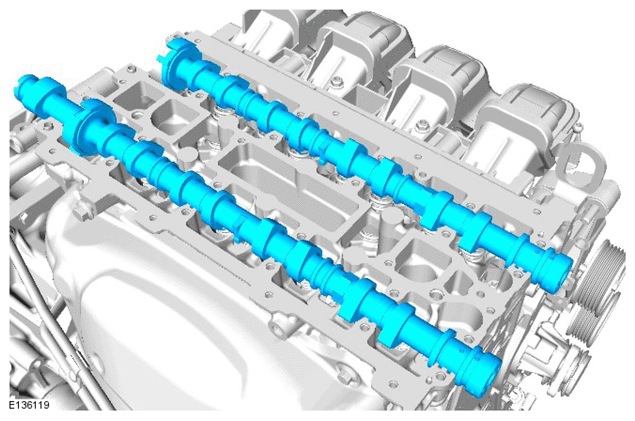

  10. NOTE: Note the orientation of the component prior to removal.
G11418235
