Balance Shaft Assembly (G1550151): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Oil Pan  (Removal and Installation).

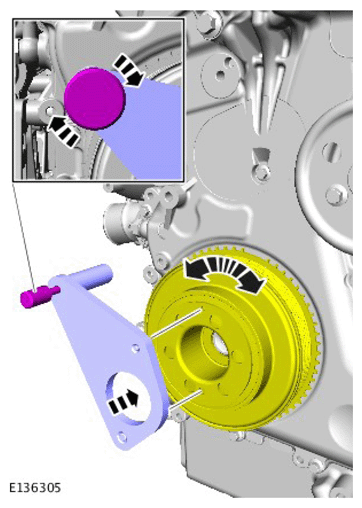

  3. G11418220

    Rotate the engine clockwise to align and install the special tool.

    Special Tool(s):  JLR-303-1595

  4. CAUTION: Note the orientation of the outer holes on the balance shafts.

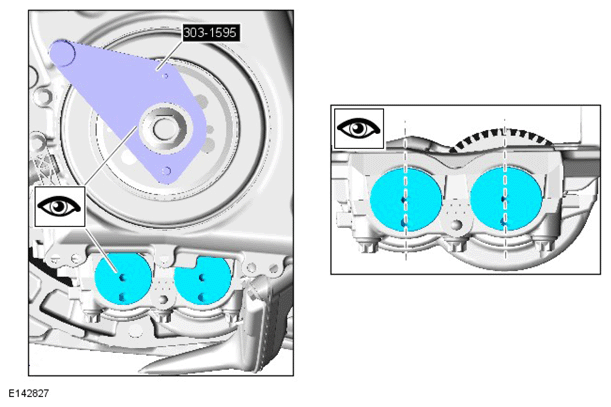

    G11418221

    Make sure that the balance shafts are aligned to the position shown prior to removal.

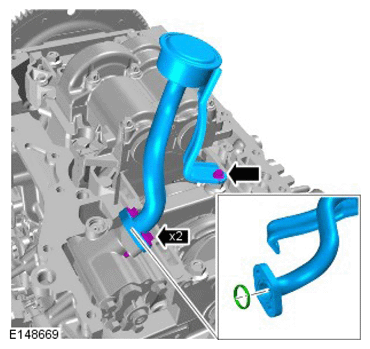

  5. G11418222

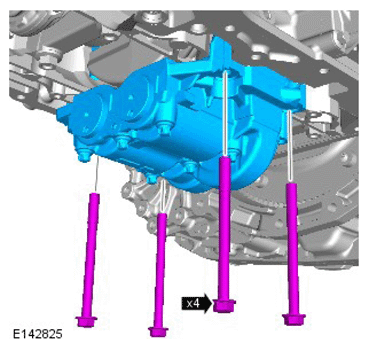

  6. G11418223

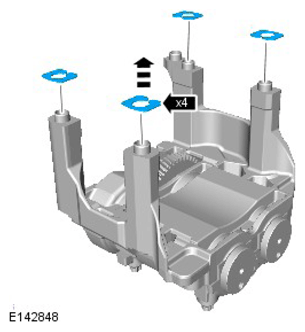

  7. G11418224
