Engine Oil Draining And Filling (G1550150): Draining

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Air Deflector (Front End Body Panels, Removal and Installation).
  3. Refer to: Oil Filter Element  (Removal and Installation).
  4. WARNING: Avoid skin contact with the specified material.
    CAUTION:
    • Hot fluid.
    • Be prepared to collect escaping fluids.

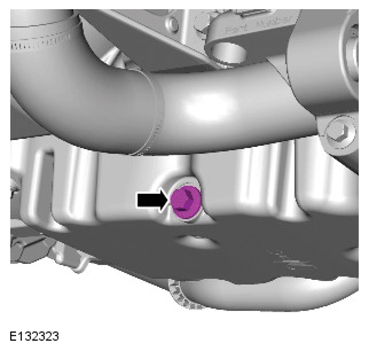

    NOTE: Discard the oil pan drain plug.
    G11418182

    Torque Specification: 26 Nm
