Water Pump
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

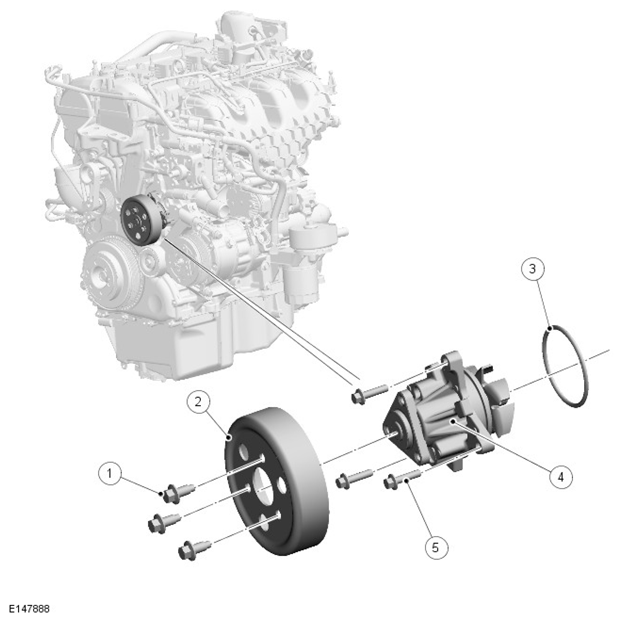

| ITEM | DESCRIPTION |
|---|---|
| 1 | Bolt (3 off) |
| 2 | Pulley |
| 3 | Bolt (3 off) |
| 4 | Water pump assembly |
| 5 | O ring seal |
The water pump is located in a cavity in the cylinder block on the front upper left side of the cylinder block. The pump is sealed in the block with an O ring seal and secured with three bolts.
A pulley which drives the pump at engine speed from the auxiliary drive belt is secured to the pump drive flange with three bolts.
