Thermostat Housing
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

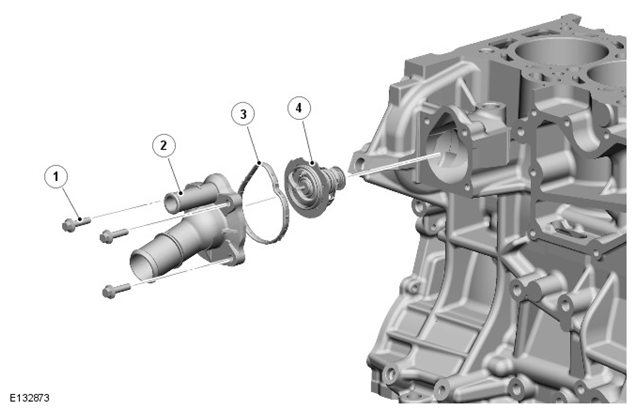

| ITEM | DESCRIPTION |
|---|---|
| 1 | Bolt (3 off) |
| 2 | Housing |
| 3 | Gasket |
| 4 | Thermostat |
The plastic thermostat housing is located on the front left side of the cylinder block. The housing is secured to the cylinder block with three bolts and sealed with a gasket. The thermostat is contained within the housing
The housing has two hose connections; the larger connection is for the bottom hose from the radiator, the smaller hose is the return from the oil cooler and coolant circulation from the degas tank.
