Oil Pan
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

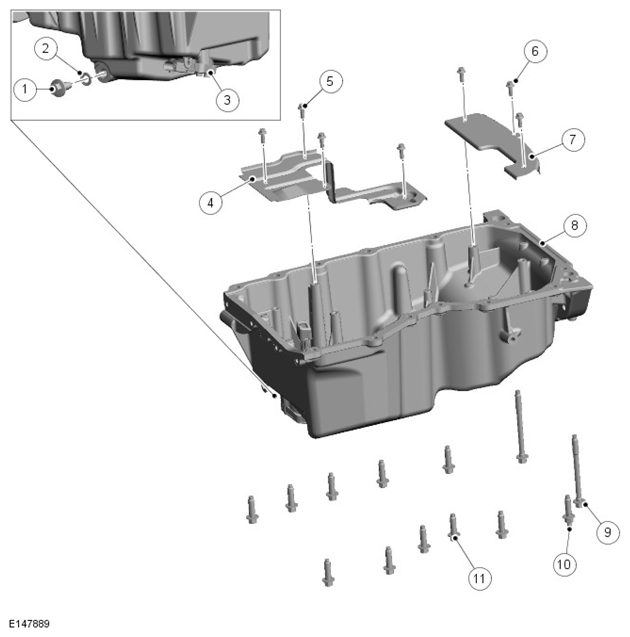

| ITEM | DESCRIPTION |
|---|---|
| 1 | Drain plug |
| 2 | Sealing washer |
| 3 | Low engine oil level sensor |
| 4 | Baffle plate |
| 5 | Bolt (4 off) |
| 6 | Bolt (3 off) |
| 7 | Baffle plate |
| 8 | Oil pan |
| 9 | Bolt - oil pan to cylinder block (2 off) |
| 10 | Stud and nut - oil pan to cylinder block |
| 11 | Bolt - oil pan to cylinder block (10 off) |
The oil pan is located on the underside of the cylinder block. It is sealed to the cylinder block with a 3 mm bead of RTV sealant and secured with twelve bolts and one stud and nut.
The oil pan contains three baffle plates which are located inside the pan and secured with bolts. The baffles prevent oil surge when cornering, braking and acceleration.
The oil is drained via removal of a drain plug and washer located in one side of the oil pan.
An oil temperature sensor is located in one side of the oil pan. The sensor is sealed in a hole in the oil pan with two O ring seals and is secured with a bolt. The sensor is connected to the ECM.
