Cylinder Block Components - 2.0L GTDI: Notes
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

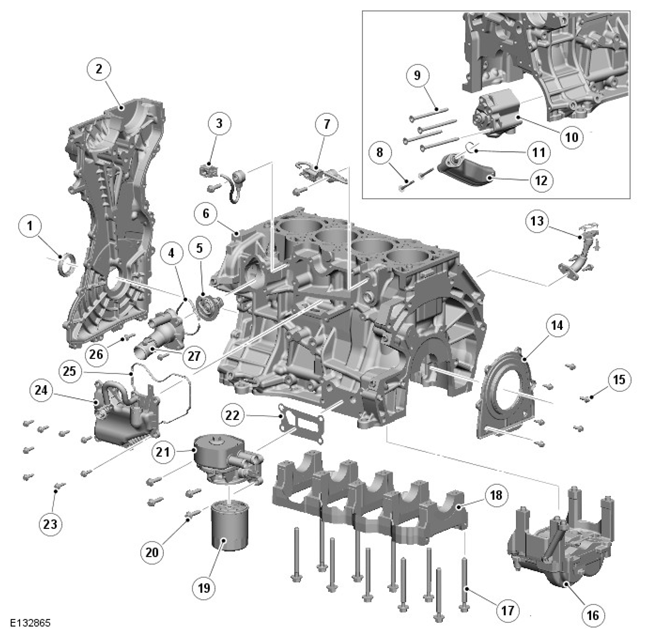

| ITEM | DESCRIPTION |
|---|---|
| 1 | Front crankshaft oil seal |
| 2 | Front cover assembly |
| 3 | Knock sensor - cylinders 1 and 2 |
| 4 | Gasket - thermostat housing |
| 5 | Thermostat |
| 6 | Cylinder block |
| 7 | Knock sensor - cylinders 3 and 4 |
| 8 | Bolt (2 off) |
| 9 | Bolt (3 off) |
| 10 | Oil pump |
| 11 | Gasket - oil pump inlet |
| 12 | Oil pump filter and pick-up assembly |
| 13 | Turbocharger oil return pipe |
| 14 | Rear crankshaft oil seal and housing |
| 15 | Screw (6 off) |
| 16 | Balancer assembly |
| 17 | Bolt (10 off) |
| 18 | Engine bulkhead bearing support |
| 19 | Oil filter |
| 20 | Screw (4 off) |
| 21 | Oil cooler and filter adapter |
| 22 | Gasket - Oil filter adapter |
| 23 | Screw (8 off) |
| 24 | Crankcase ventilation cover |
| 25 | Gasket - crankcase ventilation cover |
| 26 | Screw (3 off) |
| 27 | Thermostat housing |
